Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
The RFFM6903SR requires a specific biasing scheme to achieve optimal linearity and gain. Qorvo recommends using a voltage-controlled current source to bias the device, and provides a detailed biasing circuit in their application note AN-2171.
While the datasheet specifies an operating temperature range of -40°C to +85°C, Qorvo recommends derating the device's power dissipation at higher temperatures to ensure reliable operation. Consult Qorvo's application note AN-2171 for more information on thermal derating.
Qorvo provides a troubleshooting guide in their application note AN-2171, which covers common issues and their causes, as well as recommended solutions and debugging techniques.
Yes, the RFFM6903SR is a sensitive device and requires proper ESD protection during handling and assembly. Qorvo recommends following standard ESD precautions, such as using an ESD wrist strap, mat, or workstation, and storing the device in an anti-static bag or container.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFFM6903SR Overview

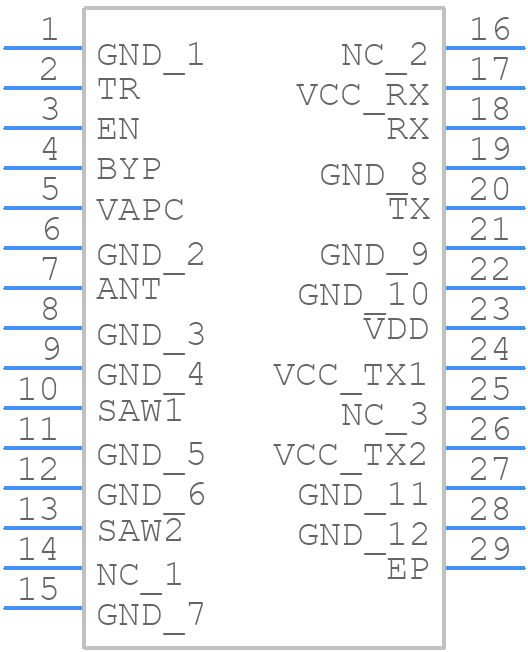

Use the download button to access the RFFM6903SR schematic symbol, PCB footprint, and 3D model.
