RFFM6903TR13 - Qorvo

Description: 890 - 960 MHz, 2.5 - 4.2 V, 1 Watt ISM Band Transmit / Receive Module

Download RFFM6903TR13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

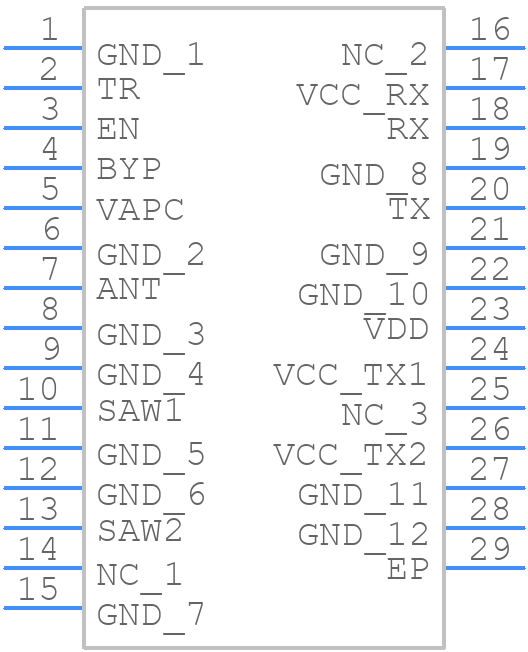

RFFM6903TR13 - Qorvo - PCB symbol
click to zoom
PCB Footprints
RFFM6903TR13 - Qorvo PCB footprint - Other - Other - RFFM6903TR13-3
click to zoom
3D Models
RFFM6903TR13 - Qorvo - 3D model - Other - RFFM6903TR13-3
click to zoom

RFFM6903TR13 Details

  • Manufacturer Part Number:

    RFFM6903TR13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    6 X 6 MM, 0.975 MM HEIGHT, ROHS COMPLIANT, LGA-28

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Qorvo

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B28

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    BUTT

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

RFFM6903TR13 Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which should be followed for optimal performance and to minimize parasitic effects.
  • Qorvo provides a detailed application note AN-2170 that provides guidance on biasing and configuring the RFFM6903TR13 for various applications, including a step-by-step design procedure.
  • The RFFM6903TR13 has a thermal pad that must be connected to a thermal ground plane to ensure proper heat dissipation. A thermal interface material (TIM) can be used to improve thermal conductivity. Qorvo recommends a maximum junction temperature of 150°C.
  • Qorvo provides a troubleshooting guide in their application note AN-2172, which covers common issues and their solutions, including oscillations, instability, and other performance-related problems.
  • The RFFM6903TR13 is a sensitive device that requires proper ESD protection and handling. Qorvo recommends following standard ESD precautions, such as using an ESD wrist strap, ESD mat, and ESD-safe packaging and storage.
