RFMD2081TR13 - Qorvo

Description: 45 - 2700 MHz IQ Modulator with Synthesizer / VCO

Download RFMD2081TR13 Model

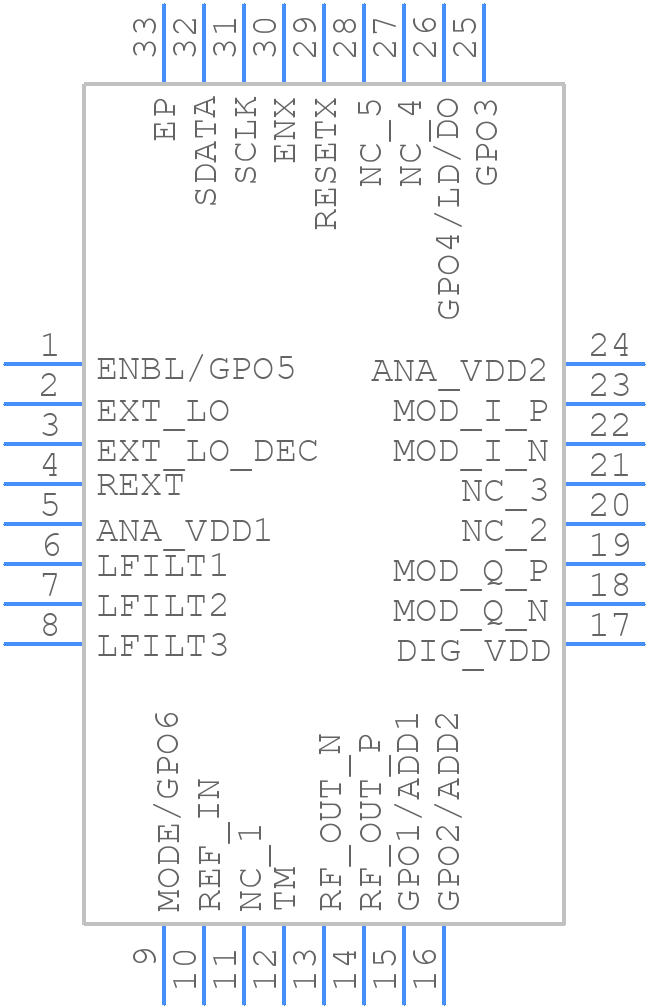

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RFMD2081TR13 - Qorvo PCB footprint - Other - Other - QFN, 32-Pin, 5mm x 5mm
click to zoom
3D Models
RFMD2081TR13 - Qorvo  - 3D model - Other - QFN, 32-Pin, 5mm x 5mm
click to zoom

RFMD2081TR13 Details

  • Manufacturer Part Number:

    RFMD2081TR13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, GREEN, QFN-32

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.95 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    MODEM-MODULATOR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

RFMD2081TR13 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate RF ground plane is recommended. Use a via-stitching technique to connect the RF ground plane to the main ground plane. Ensure a low-inductance path to ground for the RF pins.
  • Use a load-pull analysis to determine the optimal impedance for maximum gain and efficiency. A 50-ohm system is recommended, but the device can be matched to other impedances using a pi-network or a T-network.
  • A voltage-controlled biasing scheme is recommended. Set the quiescent current by adjusting the voltage on the Vbias pin. A typical quiescent current is around 100-150 mA.
  • Use a stability analysis to identify potential oscillation frequencies. Add resistive loading or capacitive loading to the output stage to improve stability. Ensure the device is operated within the recommended operating conditions.
  • The device has a thermal pad on the bottom of the package. Ensure good thermal contact between the thermal pad and a heat sink or thermal ground plane. Use a thermal interface material (TIM) to improve heat transfer. Keep the junction temperature below 150°C.
