Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-2171, which includes guidelines for thermal vias, heat sinks, and PCB material selection to ensure optimal performance and reliability.
Qorvo recommends using their GaN device modeling tools, such as the Qorvo GaN Device Model Library, to simulate and optimize the input and output matching networks for specific frequency bands and impedance requirements.
The RFPA0133SR has a maximum operating temperature of 150°C. As temperature increases, the device's performance may degrade, with reduced gain, increased noise figure, and decreased power handling. It's essential to ensure proper thermal management to maintain optimal performance.
Qorvo recommends following standard ESD precautions, such as using ESD-safe handling and storage procedures, and incorporating ESD protection devices in the circuit design. Additionally, the device should be operated within the recommended operating conditions to minimize the risk of environmental stress-related failures.
Qorvo provides guidelines for assembly and soldering in their application note AN-2171, which includes recommendations for soldering temperatures, times, and techniques to ensure reliable connections and minimize the risk of damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFPA0133SR Overview

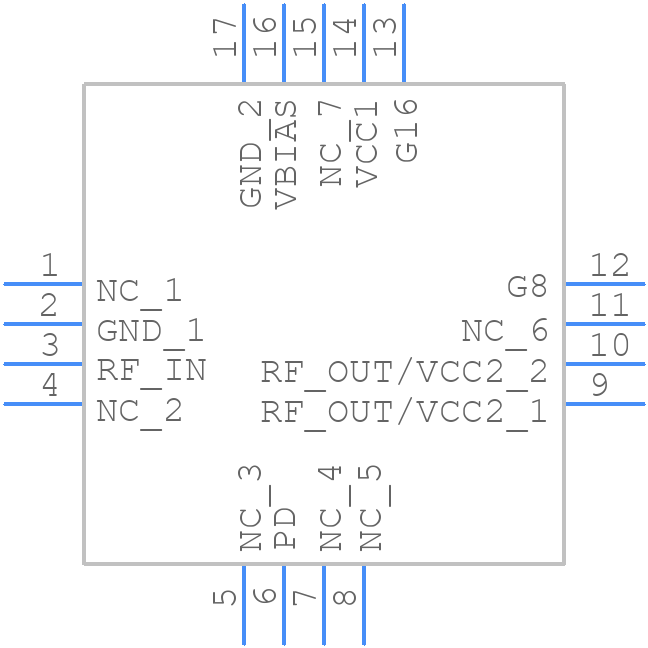

Use the download button to access the RFPA0133SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFPA0,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
