- Part Number RFPA0133TR7
- Manufacturer Qorvo
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 16-QFN
- Released Date Jun 23, 2017
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RFPA0133TR7 Details
-
Manufacturer Part Number:
RFPA0133TR7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
3 X 3 MM, QFN-16
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
Construction:
COMPONENT
-
Gain:
32 dB
-
Input Power-Max (CW):
10 dBm
-
Mounting Feature:
SURFACE MOUNT
-
Number of Functions:
1
RFPA0133TR7 Frequently Asked Questions (FAQs)
-
A good grounding scheme is crucial for the RFPA0133TR7. A solid ground plane and short, direct connections to the device's ground pins are recommended. The datasheet provides a recommended PCB layout, but it's essential to follow good RF design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device.
-
Optimizing the input and output matching networks is critical for maximum gain and efficiency. Use a network analyzer and simulation tools like ADS or AWR to design and optimize the matching networks. Consider using a pi-network or a T-network topology, and iterate on the design until you achieve the desired performance.
-
The RFPA0133TR7 can dissipate up to 2.5W of power, so thermal management is crucial. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The device's thermal resistance (RθJA) is 25°C/W, so keep the junction temperature below 150°C to ensure reliability.
-
The RFPA0133TR7 requires a specific biasing and voltage sequencing to ensure proper operation. Follow the recommended biasing scheme and voltage sequencing in the datasheet, and ensure that the voltage supplies are well-regulated and noise-free. Use a voltage regulator or a dedicated biasing circuit to ensure stable operation.
-
The RFPA0133TR7 is a sensitive device and requires proper ESD protection and handling precautions. Use an ESD wrist strap or mat, and handle the device by the package body only. Avoid touching the pins or exposed die, and use an anti-static bag or container for storage.
Trust Checks
Expert Contribution
System Verified
Community Approved
RFPA0133TR7 Overview

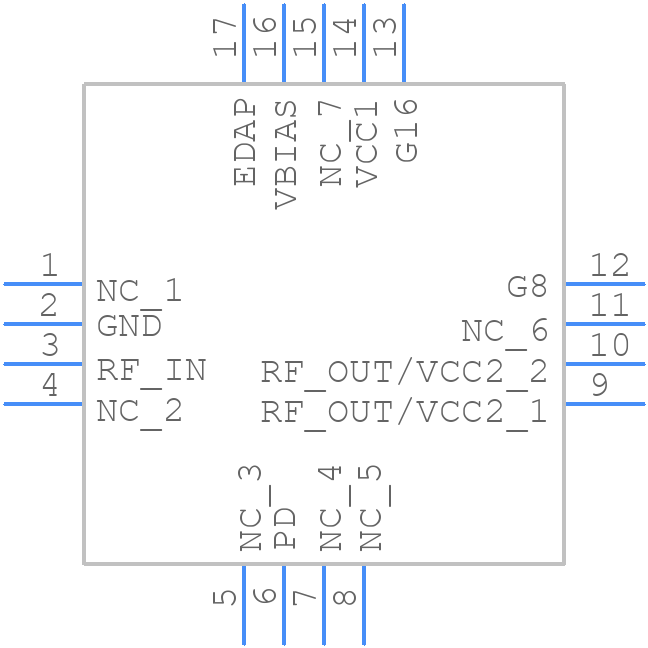

Use the download button to access the RFPA0133TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFPA0,
or try a keyword search, such as RF/Microwave Amplifiers
