- Stock & Prices $ Price & Stock for RFPA5201ESR
- Part Number RFPA5201ESR
- Manufacturer Qorvo
- Pin Count 15
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - RFPA5201ESR-1
- Released Date Sep 13, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RFPA5201ESR Details
-
Manufacturer Part Number:
RFPA5201ESR
-
Part Life Cycle Code:
Obsolete
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Qorvo
-
YTEOL:
0
RFPA5201ESR Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize parasitic effects and ensure optimal performance.
-
The biasing network can be optimized by following the guidelines in the datasheet and application notes. Additionally, Qorvo provides a biasing calculator tool that can help determine the optimal biasing components for a specific application.
-
While the datasheet specifies a maximum input power of 2W, the actual power handling capability depends on the operating frequency, bias conditions, and thermal management. It's recommended to consult with Qorvo's application engineers for specific guidance on power handling.
-
To ensure stability, follow the guidelines in the datasheet and application notes for component selection, PCB layout, and biasing. Additionally, consider using stability analysis tools, such as Qorvo's Stability Analysis Tool, to simulate and optimize the amplifier design.
-
The RFPA5201ESR is a high-power amplifier and requires proper thermal management to ensure reliability and performance. Qorvo recommends using a heat sink or thermal pad, and following the thermal management guidelines in the datasheet and application notes.
Trust Checks
Expert Contribution
System Verified
Community Approved
RFPA5201ESR Overview

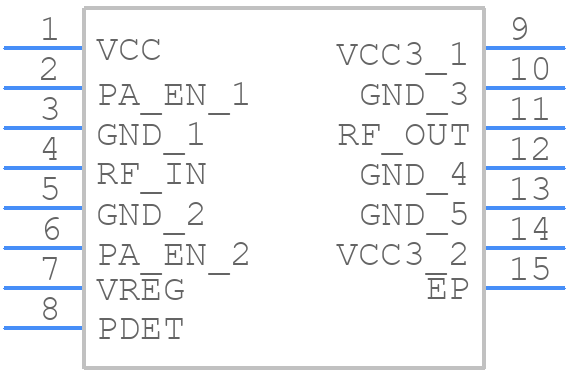

Use the download button to access the RFPA5201ESR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFPA5,
or try a keyword search, such as RF/Microwave Amplifiers
