Part Image

RFSA2013SR - Qorvo

Description: Attenuators 50-6000MHz VCA

Download RFSA2013SR Model

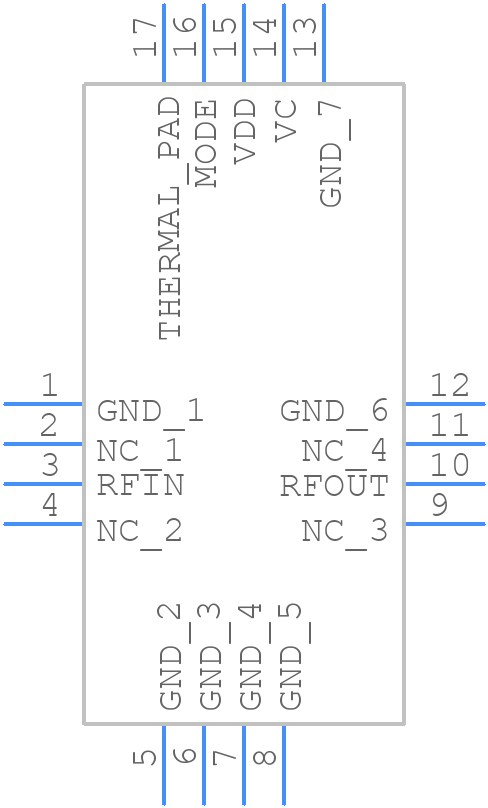

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RFSA2013SR - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RFSA2013SR
click to zoom
3D Models
RFSA2013SR - Qorvo  - 3D model - Quad Flat No-Lead - RFSA2013SR
click to zoom

RFSA2013SR Details

  • Manufacturer Part Number:

    RFSA2013SR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Manufacturer:

    Qorvo

  • YTEOL:

    6.9

  • Attenuation-Nom:

    30 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    3.5 dB

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    TIN SILVER

  • VSWR-Max:

    1.43

RFSA2013SR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the RF signal is recommended. Use a via-stitching technique to connect the ground plane to the heat sink. Ensure a low-inductance path to ground for the RF signal.
  • Use a resistive divider network to set the bias voltage. Ensure the bias voltage is stable and noise-free. A voltage regulator or a low-dropout regulator can be used to regulate the bias voltage.
  • Use a heat sink with a thermal conductivity of at least 1 W/m-K. Ensure good thermal contact between the device and the heat sink. Use thermal interface material (TIM) to fill any gaps. Keep the ambient temperature below 85°C.
  • Use a shielded enclosure and ensure good grounding of the PCB. Use EMI filters or ferrite beads on the power supply lines. Keep the RF signal path as short as possible and use a common-mode choke to reduce radiation.
  • Use a pi-network or a T-network topology for input and output matching. Ensure the matching network is designed to match the device's input and output impedance to the system's impedance (typically 50 ohms).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RFSA2013SR Overview

Use the download button to access the RFSA2013SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFSA2, or try a keyword search, such as RF/Microwave Attenuators

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
