A good grounding scheme is crucial for the RFSA2033TR7. A solid ground plane and short, direct connections to the ground pins are recommended. The datasheet provides a recommended PCB layout, but it's essential to follow good RF design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device.
The RFSA2033TR7 is a highly flexible device, and the input and output matching networks will depend on the specific application and frequency band. Qorvo provides a set of recommended matching networks in the datasheet, but engineers may need to use simulation tools and/or empirical methods to optimize the matching networks for their specific use case.
The RFSA2033TR7 is a high-power device, and thermal management is critical to ensure reliable operation. The device has a thermal pad on the bottom, which should be connected to a solid ground plane or a thermal heat sink. The datasheet provides thermal resistance values, and engineers should ensure that the device is properly mounted and heat-sinked to prevent overheating.
The RFSA2033TR7 requires careful biasing and sequencing to ensure proper operation. The datasheet provides recommended biasing and sequencing schemes, but engineers should carefully follow these guidelines to prevent damage to the device or ensure optimal performance.
The RFSA2033TR7 is a sensitive device and requires proper ESD protection and handling precautions. Engineers should follow standard ESD handling procedures, such as using wrist straps, anti-static mats, and ESD-safe tools, to prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFSA2033TR7 Overview

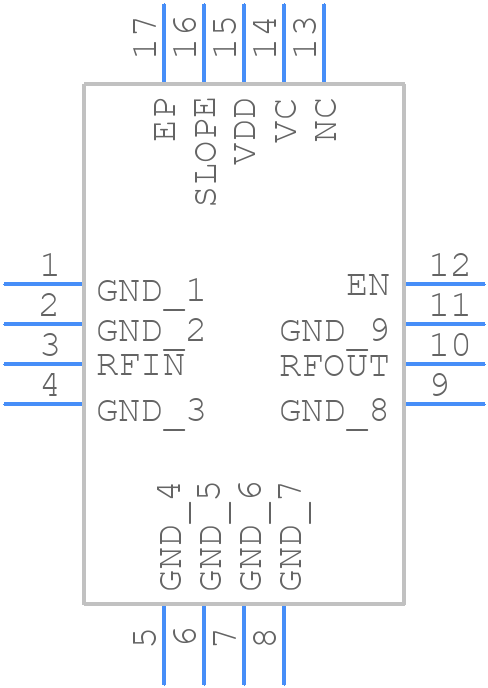

Use the download button to access the RFSA2033TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFSA2,
or try a keyword search, such as RF/Microwave Attenuators
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
