Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
Qorvo provides a component selection guide in their application note AN-2171, which helps engineers choose the correct external components, such as capacitors, inductors, and resistors, based on the specific application and frequency range.
The maximum power handling capability of the RFSA3613SR is not explicitly stated in the datasheet. However, according to Qorvo's application note AN-2171, the device can handle up to 2W of continuous wave (CW) power. It's essential to follow proper thermal management and heat sinking to ensure reliable operation.
Impedance matching is critical for optimal performance. Qorvo provides a impedance matching guide in their application note AN-2171, which includes examples of matching networks for different frequency ranges. Engineers can use simulation tools, such as Qorvo's own QorvoMatch software, to design and optimize the matching network.
The operating temperature range for the RFSA3613SR is -40°C to +105°C, as stated in the datasheet. However, it's essential to note that the device's performance may degrade at higher temperatures, and proper thermal management is necessary to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFSA3613SR Overview

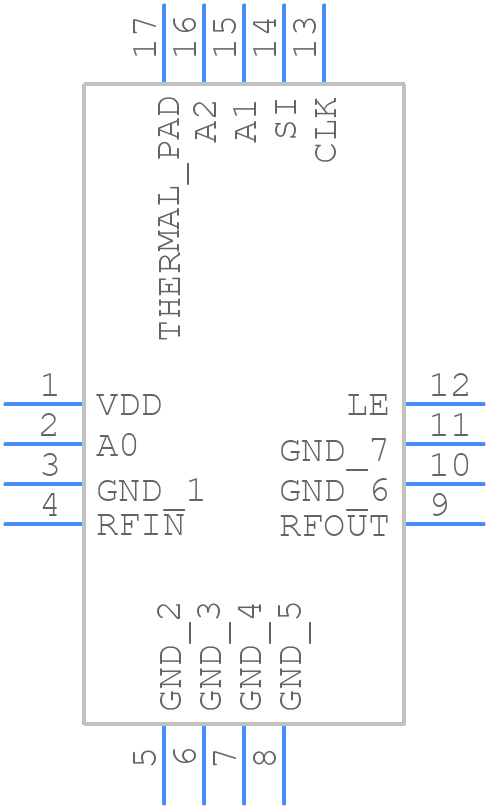

Use the download button to access the RFSA3613SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFSA3,
or try a keyword search, such as RF/Microwave Attenuators
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
