Description:• Patented Circuit Architecture
• 50 – 6000 MHz Frequency Range
• 3 Selectable Slopes of Attenuation vs. Temperature
• +55 dBm IIP3 Typical
• +85 dBm IIP2 Typical
• High P1dB, > +30 dBm
• Low Current Consumption, 1 mA Typical
• Single 5 Volt DC Supply
A good grounding scheme is crucial for the RFSA4013TR7. It is recommended to use a solid ground plane and to connect the exposed pad to the ground plane. The datasheet provides a recommended PCB layout, but it's essential to follow good RF design practices, such as minimizing trace lengths and using 50-ohm transmission lines.
The optimal biasing of the RFSA4013TR7 depends on the specific application and operating conditions. In general, it's recommended to follow the biasing scheme outlined in the datasheet, which includes a voltage-controlled current source and a resistive voltage divider. The bias voltage and current should be adjusted to achieve the desired linearity and efficiency.
The RFSA4013TR7 is a high-power device that requires proper thermal management to ensure reliable operation. It's essential to provide a good thermal path from the device to a heat sink or heat spreader, and to ensure that the junction temperature remains below the maximum rating of 150°C. The datasheet provides thermal resistance values and recommended thermal management guidelines.
Troubleshooting issues with the RFSA4013TR7 requires a systematic approach. First, verify that the device is properly biased and that the input and output impedances are matched. Check for any signs of oscillation or instability, and use tools such as a spectrum analyzer or oscilloscope to diagnose the issue. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
The RFSA4013TR7 is a sensitive device that requires proper ESD protection and handling precautions. It's essential to follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and to avoid touching the device or its leads. The datasheet provides specific guidelines for ESD protection and handling.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFSA4013TR7 Overview

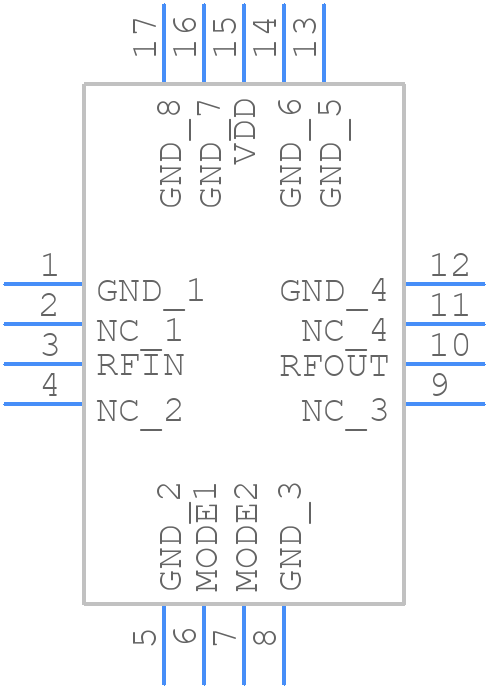

Use the download button to access the RFSA4013TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFSA4,
or try a keyword search, such as RF/Microwave Attenuators
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
