Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
The RFSW1012TR7 has a thermal pad that must be connected to a thermal ground plane or a heat sink to dissipate heat. Ensure that the thermal pad is soldered to a large copper area on the PCB to facilitate heat dissipation.
Qorvo recommends a peak reflow temperature of 260°C (500°F) and a dwell time of 20-30 seconds. It's essential to follow a controlled soldering process to prevent damage to the device.
The RFSW1012TR7 requires a bias voltage of 2.7-5.5V and a bias current of 10-50mA. Ensure that the bias voltage is stable and noise-free, and that the bias current is limited to prevent overheating.
The RFSW1012TR7 is a sensitive device and requires proper ESD protection during handling and assembly. Use ESD-safe materials, wrist straps, and mats to prevent damage. Handle the device by the body, not the pins, and avoid touching the pins or internal components.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFSW1012TR7 Overview

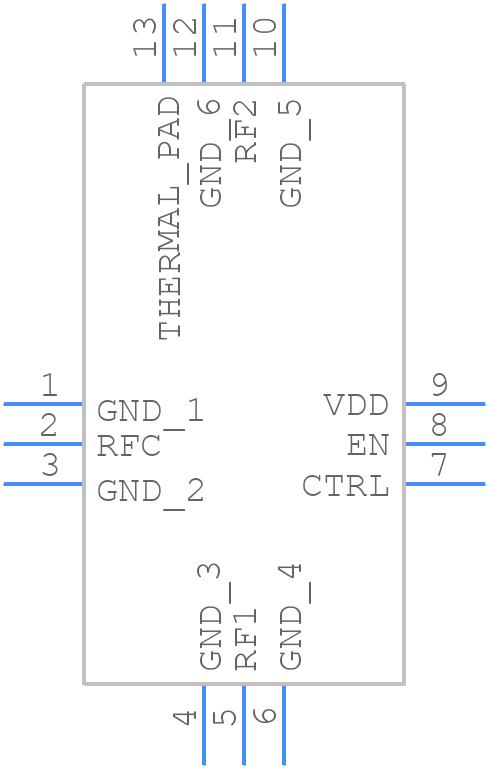

Use the download button to access the RFSW1012TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFSW1,
or try a keyword search, such as RF/Microwave Switches
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
