Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
The RFSW6023TR7 requires a bias voltage of 3.3V or 5V, and a bias current of 10mA to 20mA. Ensure that the bias circuitry is designed to provide a stable voltage and current, and that the bias pins are properly decoupled to prevent noise and oscillations.
While the datasheet specifies an operating frequency range of 50MHz to 6000MHz, the RFSW6023TR7 can actually operate up to 7000MHz with some degradation in performance. However, it's essential to consult with Qorvo's application engineers to determine the feasibility of operating at higher frequencies.
The RFSW6023TR7 has a maximum junction temperature of 150°C. Ensure that the device is mounted on a heat sink or a thermally conductive substrate, and that the PCB is designed to dissipate heat efficiently. Additionally, consider using thermal interface materials to improve heat transfer.
The RFSW6023TR7 has an ESD rating of 1kV HBM and 250V MM. Ensure that the device is handled and stored in an ESD-protected environment, and that ESD protection devices are used in the circuit design to prevent damage from electrostatic discharge.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFSW6023TR7 Overview

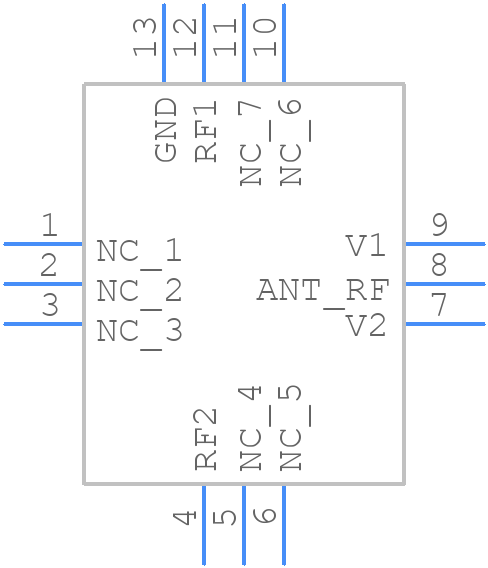

Use the download button to access the RFSW6023TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFSW6,
or try a keyword search, such as RF/Microwave Switches
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
