Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
The RFSW6024TR13 requires a bias voltage of 3.3V or 5V, and a bias current of 10mA to 20mA. Ensure that the bias voltage is stable and noise-free, and that the bias current is within the recommended range to achieve optimal performance.
The RFSW6024TR13 is designed to operate up to 6 GHz, but the maximum operating frequency may vary depending on the specific application and PCB layout. It's essential to evaluate the device's performance in your specific application to determine the maximum operating frequency.
The RFSW6024TR13 has a maximum junction temperature of 150°C. Ensure that the device is properly mounted on a heat sink or thermal pad, and that the PCB is designed to dissipate heat effectively. Follow Qorvo's thermal management guidelines to prevent overheating and ensure reliable operation.
The RFSW6024TR13 is a sensitive device and requires proper ESD protection to prevent damage. Use a qualified ESD protection device, such as a TVS diode, and follow Qorvo's ESD protection guidelines to ensure the device is properly protected.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFSW6024TR13 Overview

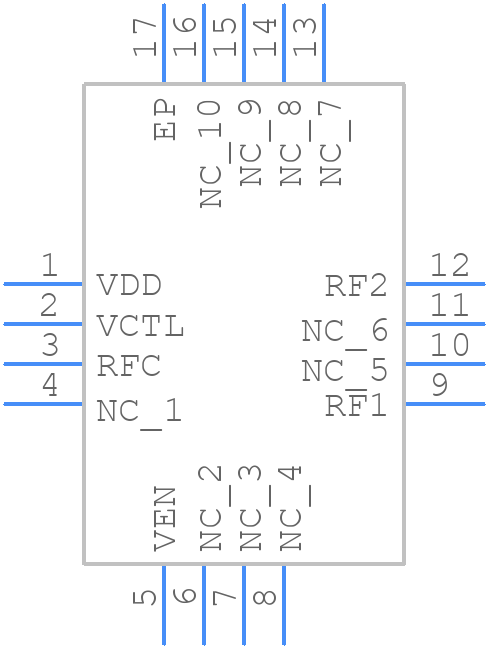

Use the download button to access the RFSW6024TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFSW6,
or try a keyword search, such as RF/Microwave Switches
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
