Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The RFSW6032TR7 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. A thermal via array can be used to dissipate heat to the other side of the board. Additionally, a heat sink or thermal interface material can be used to further improve thermal management.
While the datasheet specifies an operating temperature range of -40°C to 105°C, it's essential to note that the device's performance and reliability may degrade at higher temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
The RFSW6032TR7 requires a specific biasing scheme to operate optimally. Qorvo provides a recommended biasing circuit in their application note AN-2171, which includes a voltage regulator and bias resistors. It's essential to follow these guidelines to ensure the device is properly biased.
The RFSW6032TR7 is a sensitive device and requires proper ESD handling and storage. It's recommended to handle the device in an ESD-controlled environment, use ESD-safe packaging and storage materials, and follow proper grounding procedures to prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFSW6032TR7 Overview

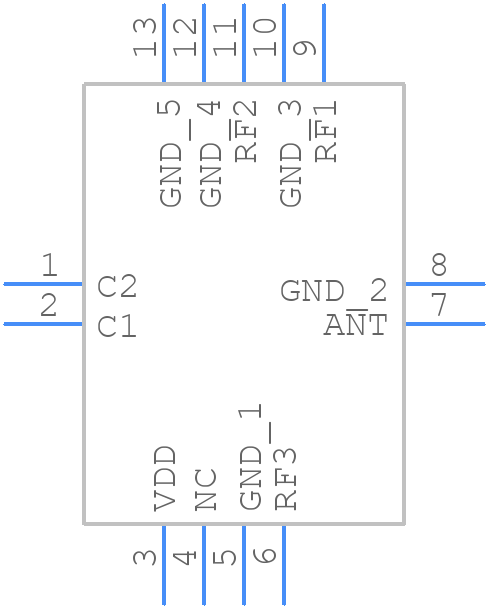

Use the download button to access the RFSW6032TR7 schematic symbol, PCB footprint, and 3D model.
