RFSW6042SR - Qorvo

Description: 5 - 6000 MHz Low Insertion High Isolation SP4T Switch

Download RFSW6042SR Model

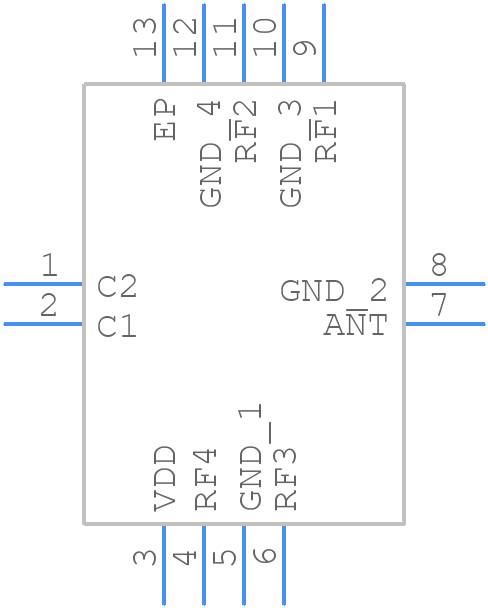

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RFSW6042SR - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RFSW6032TR7
click to zoom
3D Models
RFSW6042SR - Qorvo  - 3D model - Quad Flat No-Lead - RFSW6032TR7
click to zoom

RFSW6042SR Details

  • Manufacturer Part Number:

    RFSW6042SR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    1.80 X 1.80 MM, GREEN, QFN-12

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Qorvo

  • YTEOL:

    9.2

  • JESD-30 Code:

    S-XQCC-N12

  • Length:

    1.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.65 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    1.8 mm

RFSW6042SR Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout and thermal management guidelines in their application note AN-2171, which includes details on pad layout, thermal vias, and heat sink attachment.
  • The RFSW6042SR requires a bias voltage of 3.3V to 5V on the VDD pin, and a bias current of 10mA to 20mA on the VBIAS pin. Ensure that the bias voltage and current are within the recommended range for optimal performance.
  • While the datasheet specifies an operating frequency range of DC to 6 GHz, the RFSW6042SR can operate up to 8 GHz with some degradation in performance. However, it's recommended to consult with Qorvo's application engineers for specific guidance on high-frequency operation.
  • The RFSW6042SR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices, such as TVS diodes, to ensure robust ESD protection in the final product.
  • The control pins (CTRL1 and CTRL2) require a logic-level input signal with a voltage swing of 0V to VDD. A recommended drive circuitry is a CMOS logic gate or a digital output from a microcontroller with a pull-up resistor to VDD.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RFSW6042SR Overview

Use the download button to access the RFSW6042SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFSW6, or try a keyword search, such as Cellular Telephone Circuits

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
