Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-2171, which includes guidelines for thermal pad design, PCB material selection, and heat sink attachment.
Qorvo provides a switch modeling tool that allows users to simulate and optimize the switch's performance for their specific frequency band of interest. The tool can be accessed through Qorvo's website.
Qorvo recommends using a CMOS-compatible driver circuit with a voltage swing of 0 to 3.3V to ensure proper switching operation. A detailed driver circuit design is provided in the datasheet.
To prevent latch-up or damage, ensure that the switch is operated within its recommended operating conditions, including voltage, current, and temperature. Additionally, follow proper PCB design and layout guidelines, and use adequate ESD protection measures.
The typical turn-on and turn-off time for the RFSW8000TR7 is around 10-20 ns, depending on the drive circuitry and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFSW8000TR7 Overview

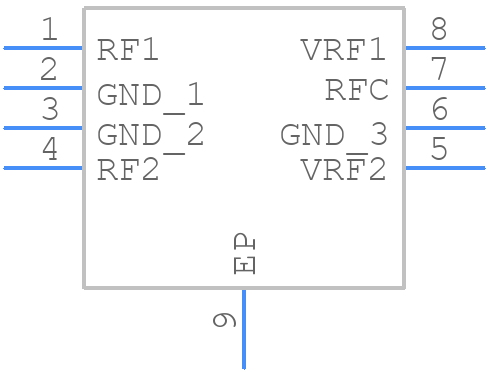

Use the download button to access the RFSW8000TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFSW8,
or try a keyword search, such as RF/Microwave Switches
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
