- Part Number RFSW8008TR7
- Manufacturer Qorvo
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - RFSW8008TR7-3
- Released Date Jan 28, 2022
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
RFSW8008TR7 Details
-
Manufacturer Part Number:
RFSW8008TR7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
QFN-7
-
Factory Lead Time:
24 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
Construction:
COMPONENT
-
Insertion Loss-Max:
1.5 dB
-
Isolation-Min:
20 dB
-
Mounting Feature:
SURFACE MOUNT
RFSW8008TR7 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-2171, which includes guidelines for thermal pad connection, heat sink attachment, and PCB layout considerations to ensure optimal performance and reliability.
-
Qorvo provides a detailed biasing and configuration guide in their application note AN-2172, which includes information on voltage and current requirements, pin configurations, and recommended component values for various applications.
-
Qorvo provides a test and measurement guide in their application note AN-2173, which includes procedures for measuring insertion loss, isolation, and return loss, as well as recommendations for test equipment and setup.
-
Qorvo recommends following standard ESD protection procedures, such as using ESD-safe handling and storage materials, grounding personnel and equipment, and using ESD-protective packaging. Additionally, the switch has built-in ESD protection diodes, but it's still important to follow proper handling and assembly procedures to prevent damage.
-
Qorvo performs a range of reliability and qualification tests on the RFSW8008TR7, including temperature cycling, humidity testing, vibration testing, and electrical stress testing, to ensure the device meets or exceeds industry standards for reliability and performance.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
RFSW8008TR7 Overview

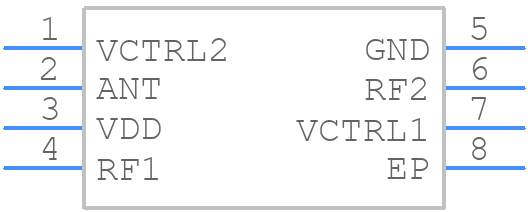

Use the download button to access the RFSW8008TR7 schematic symbol, PCB footprint, and 3D model.
