A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The RF traces should be kept short and away from the digital lines. A good layout will help minimize electromagnetic interference (EMI) and ensure optimal performance.
The RFX2411 requires a 2.7V to 5.5V power supply. Ensure that the voltage regulator is stable and can provide a clean power supply. Also, ensure that the bias resistors are correctly sized to provide the recommended bias current.
The RFX2411 can handle up to 30 dBm of input power. However, it's recommended to operate the device at a maximum of 20 dBm to ensure optimal performance and prevent damage to the device.
Use a spectrum analyzer to check the output frequency and power level. Verify that the input signal is within the recommended range. Check the PCB layout for any signs of damage or poor construction. Consult the datasheet and application notes for troubleshooting guides.
The RFX2411 is rated for operation up to 85°C. However, it's recommended to derate the device's power handling capability at higher temperatures. Consult the datasheet for thermal derating guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFX2411 Overview

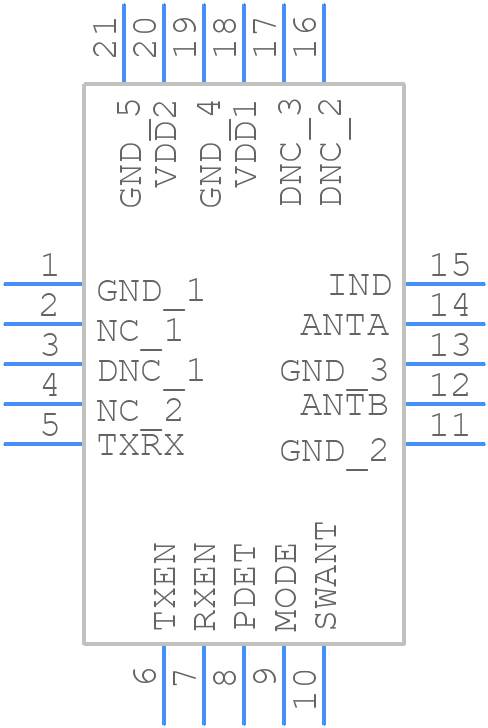

Use the download button to access the RFX2411 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFX24,
or try a keyword search, such as RF/Microwave Switches
