RGP15J-E3/54 - Vishay

Description: Vishay 600V 1.5A, Diode, 2-Pin DO-240AC RGP15J-E3/54

Download RGP15J-E3/54 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RGP15J-E3/54 - Vishay - PCB symbol
click to zoom
PCB Footprints

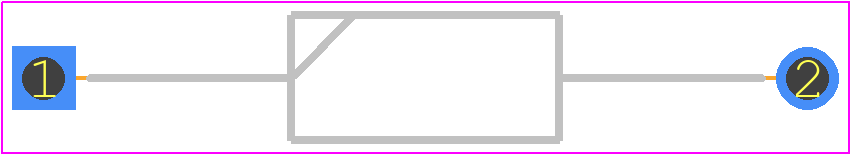

RGP15J-E3/54 - Vishay PCB footprint - Diodes, Axial Diameter Horizontal Mounting - Diodes, Axial Diameter Horizontal Mounting - DO-204AC (DO-15)
