RHP-110+ - Mini-Circuits

Description: 1.3425GHz Center Frequency High Pass RF Filter (Radio Frequency) 2.315GHz Bandwidth 8-SMD, No Lead

Download RHP-110+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

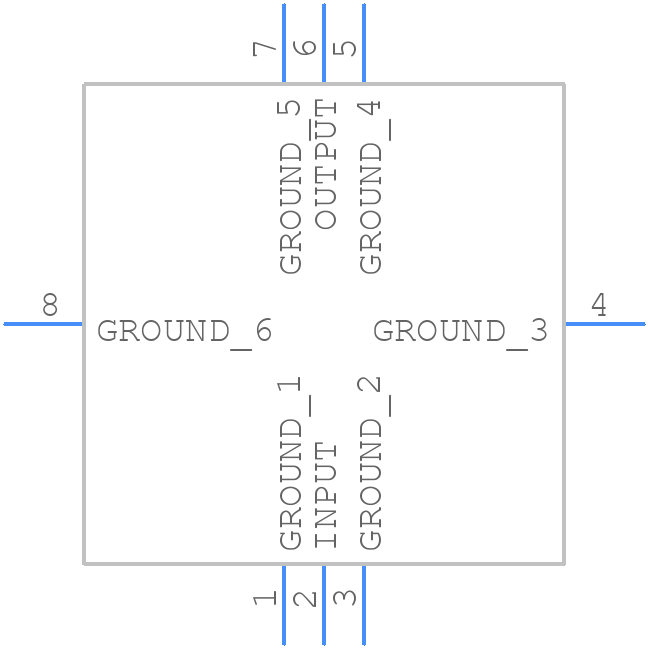

Symbol
RHP-110+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RHP-110+ - Mini-Circuits PCB footprint - Other - Other - GP731_2024-2
click to zoom
3D Models
RHP-110+ - Mini-Circuits - 3D model - Other - GP731_2024-2
click to zoom

RHP-110+ Details

  • Manufacturer Part Number:

    RHP-110+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Attenuation Frequency-Max:

    75 MHz

  • Attenuation Frequency-Min:

    60 MHz

  • Attenuation@Freq-Max:

    20 dB

  • Attenuation@Freq-Min:

    40 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    110 MHz

  • Filter Type:

    HIGH PASS FILTER

  • Height:

    2.54 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1 dB

  • JESD-609 Code:

    e4

  • Length:

    8.89 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Terminal Finish:

    GOLD OVER NICKEL

  • VSWR:

    1.2

  • Width:

    8.89 mm

RHP-110+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • To achieve the best possible noise figure, ensure that the input and output impedances are matched to 50 ohms, and the device is operated within its recommended operating conditions. Additionally, use a high-quality, low-noise power supply and minimize the length of the input and output transmission lines.
  • While the datasheet specifies an operating temperature range of -40°C to +85°C, it's essential to note that the device's performance and reliability may degrade above +70°C. It's recommended to operate the device within a temperature range of -20°C to +60°C for optimal performance and reliability.
  • While the RHP-110+ is designed for 50 ohm systems, it can be used in non-50 ohm systems with some performance degradation. However, it's essential to perform impedance matching and consider the impact on the device's noise figure, gain, and linearity.
  • The recommended biasing scheme for the RHP-110+ is a single positive supply voltage (Vdd) with a recommended value of 12V to 15V. The device also requires a negative supply voltage (Vgg) of -2V to -5V for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RHP-110+ Overview

Use the download button to access the RHP-110+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RHP-1, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
