RHP-305+ - Mini-Circuits

Description: Signal Conditioning HIGH PASS FLTR / SURF MT /RoHS

Download RHP-305+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

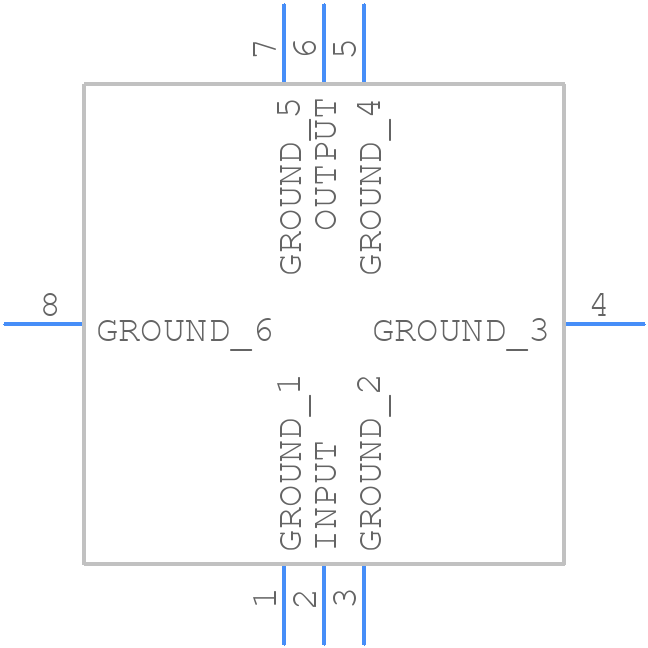

Symbol
RHP-305+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RHP-305+ - Mini-Circuits PCB footprint - Other - Other - RHP-305+-1
click to zoom
3D Models
RHP-305+ - Mini-Circuits - 3D model - Other - RHP-305+-1
click to zoom

RHP-305+ Details

  • Manufacturer Part Number:

    RHP-305+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.7

  • Attenuation Frequency-Max:

    215 MHz

  • Attenuation@Freq-Max:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    305 MHz

  • Filter Type:

    HIGH PASS FILTER

  • Height:

    2.54 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    8.89 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.2

  • Width:

    8.89 mm

RHP-305+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator tool on their website, which can help you determine the required components and their values.
  • The maximum power handling capability of the RHP-305+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application notes, the device can handle up to 1W of continuous power. Exceeding this limit may result in reduced performance, overheating, or even damage to the device.
  • While the RHP-305+ is primarily designed for linear applications, it can be used in switching applications with some caution. However, the device's switching speed and frequency should be limited to avoid overheating and reduce electromagnetic interference (EMI). It's recommended to consult with Mini-Circuits' application engineers for specific guidance.
  • The operating temperature range for the RHP-305+ is -40°C to +85°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to derate the power handling capability accordingly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RHP-305+ Overview

Use the download button to access the RHP-305+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RHP-3, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
