RHRG75120 - onsemi

RHRG75120 Details

• Manufacturer Part Number:

  RHRG75120

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

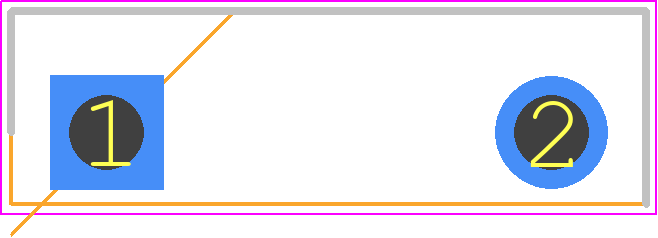

• Part Package Code:

  TO-247-2

• Manufacturer Package Code:

  340CL

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  0

• Additional Feature:

  FREE WHEELING DIODE, HIGH RELIABILITY, PD-CASE

• Application:

  HYPERFAST SOFT RECOVERY

• Breakdown Voltage-Min:

  1200 V

• Case Connection:

  CATHODE

• Configuration:

  SINGLE

• Diode Element Material:

  SILICON

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  2.6 V

• JEDEC-95 Code:

  TO-247

• JESD-30 Code:

  R-PSFM-T2

• JESD-609 Code:

  e3

• Non-rep Pk Forward Current-Max:

  500 A

• Number of Elements:

  1

• Number of Phases:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -65 °C

• Output Current-Max:

  75 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Packing Method:

  TUBE

• Qualification Status:

  Not Qualified

• Rep Pk Reverse Voltage-Max:

  1200 V

• Reverse Current-Max:

  250 µA

• Reverse Recovery Time-Max:

  0.1 µs

• Reverse Test Voltage:

  1200 V

• Surface Mount:

  NO

• Technology:

  AVALANCHE

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE
