RJ11-6N4-B - TE Connectivity

RJ11-6N4-B Details

• Manufacturer Part Number:

  RJ11-6N4-B

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Additional Feature:

  ROHS COMPLIANT

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  0.515 inch

• Body Depth:

  0.74 inch

• Body Length:

  0.62 inch

• Body/Shell Style:

  JACK

• Connector Type:

  TELECOM AND DATACOM CONNECTOR

• Contact Finish Mating:

  GOLD (50) OVER NICKEL (100)

• Contact Finish Termination:

  Gold (Au) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Resistance:

  30 mΩ

• Contact Style:

  TELCOM, MODULAR

• Dielectric Withstanding Voltage:

  1000VAC V

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYESTER

• JESD-609 Code:

  e4

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number of Ports:

  1

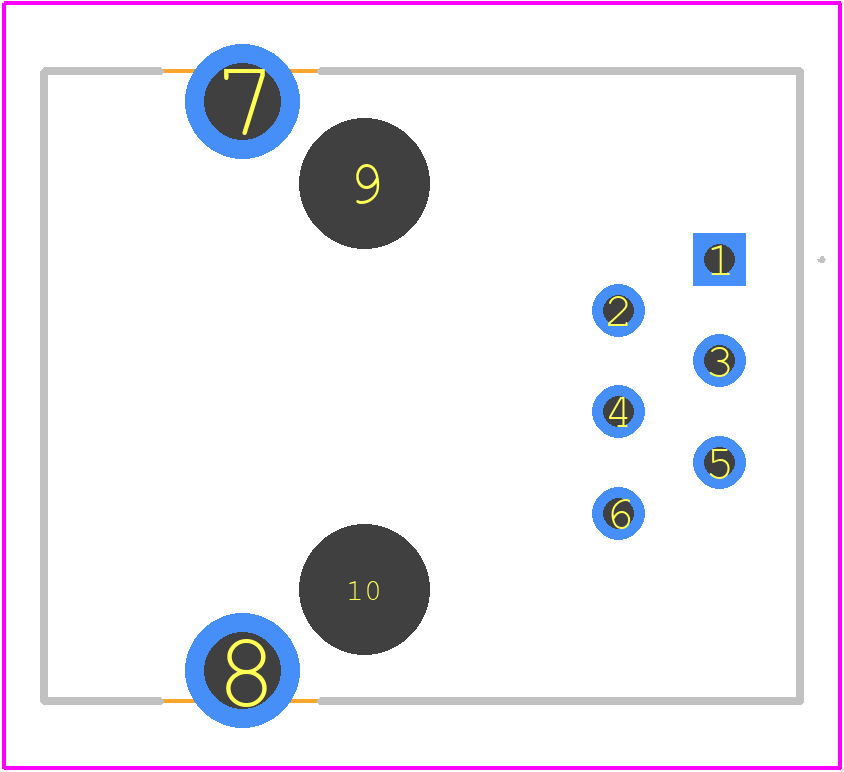

• PCB Contact Pattern:

  STAGGERED

• Plating Thickness:

  50u inch

• Reference Standard:

  CSA, UL

• Shell Finish:

  TIN

• Shell Material:

  COPPER ALLOY

• Terminal Length:

  0.135 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  6
