RJ2V-C-D24 - Idec

RJ2V-C-D24 Details

• Manufacturer Part Number:

  RJ2V-C-D24

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Manufacturer:

  IDEC Corporation

• YTEOL:

  0

• Body Breadth:

  12.7 mm

• Body Height:

  25.5 mm

• Body Length or Diameter:

  29 mm

• Coil Current(DC)-Max:

  0.022 A

• Coil Operate Voltage(DC):

  16.8 V

• Coil Power:

  640 mW

• Coil Release Voltage(DC):

  2.4 V

• Coil Resistance:

  1080 Ω

• Coil Voltage(DC)-Max:

  40.8 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  2000VA@250VAC

• Contact (AC) Max Rating R Load:

  8A@250VAC

• Contact Current(AC)-Max:

  8 A

• Contact Current(DC)-Max:

  8 A

• Contact (DC) Max Power Rating R Load:

  240W@125VDC

• Contact (DC) Max Rating R Load:

  8A@125VDC

• Contact Resistance:

  50 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  125 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Nickel

• Input Switching Control Type:

  Random

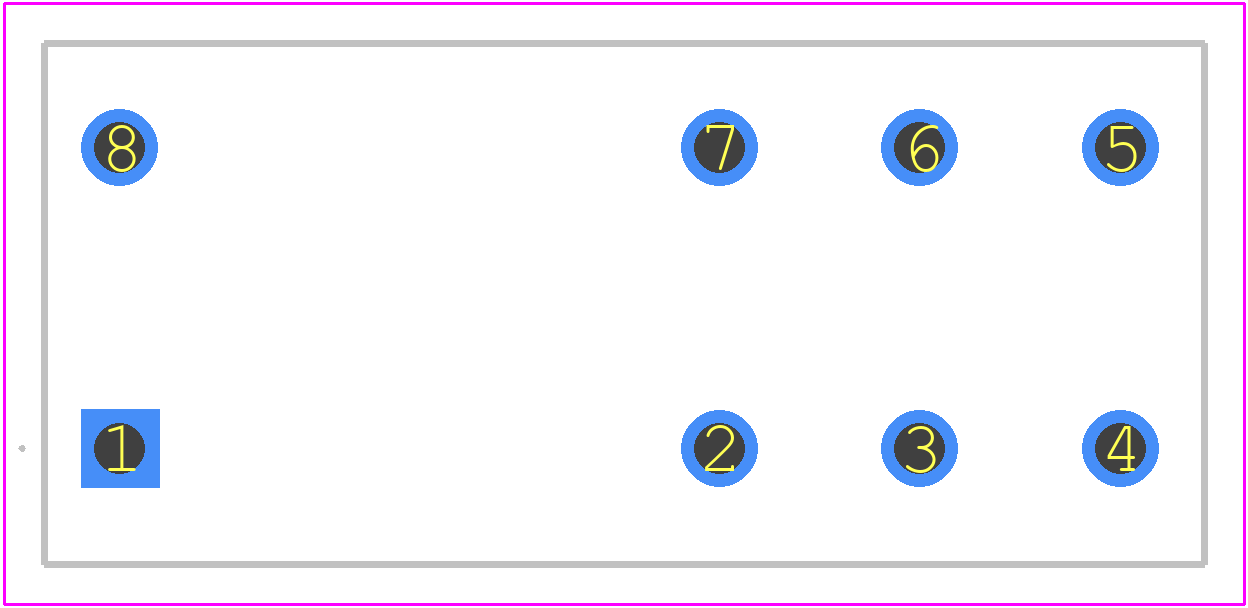

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  8

• Operate Time:

  15 ms

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Physical Dimension:

  29mm x 12.7mm x 25.5mm

• Reference Standard:

  CE; CSA; UL; VDE

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Surface Mount:

  NO

• Terminal Length:

  0.003987807975615951 inch

• Termination Type:

  SOLDER
