RJE03-166-2420 - Amphenol

Description: Modular Connectors / Ethernet Connectors 6P Modular Jack Partial Shield

Download RJE03-166-2420 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RJE03-166-2420 - Amphenol - PCB symbol
click to zoom
PCB Footprints

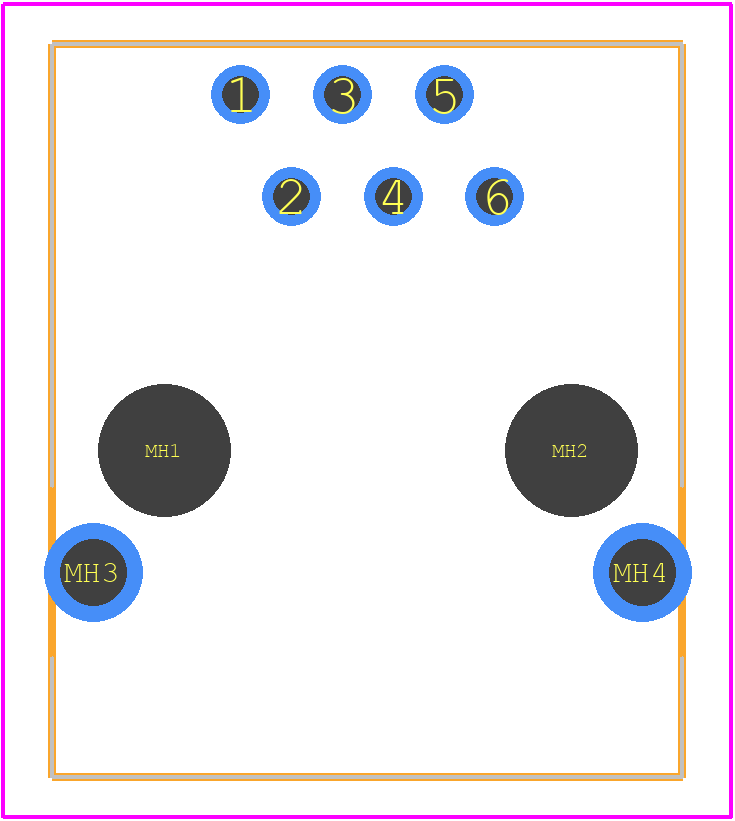

RJE03-166-2420 - Amphenol PCB footprint - Other - Other - RJE03-166-2420-2
click to zoom
3D Models
RJE03-166-2420 - Amphenol - 3D model - Other - RJE03-166-2420-2
click to zoom

RJE03-166-2420 Details

  • Manufacturer Part Number:

    RJE03-166-2420

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Amphenol Corporation

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.519 inch

  • Body Depth:

    0.722 inch

  • Body Length:

    0.62 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    TELCOM, MODULAR

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • PCB Contact Pattern:

    STAGGERED

  • Plating Thickness:

    50u inch

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    COPPER ALLOY

  • Terminal Length:

    0.138 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

RJE03-166-2420 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.8 Nm (4.4-7.0 in-lbs).
  • Yes, the RJE03-166-2420 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
  • Yes, the RJE03-166-2420 connector is designed to operate in harsh environments, with a temperature range of -55°C to 150°C and humidity resistance up to 95% RH.
  • The RJE03-166-2420 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the RJE03-166-2420 connector is designed for automated assembly and wire termination processes, making it suitable for high-volume production environments.
