RJE58-188-5401 - Amphenol

Description: Modular Connectors / Ethernet Connectors 1 PORT 8P R/A STD PRFL CAT5e002

Download RJE58-188-5401 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

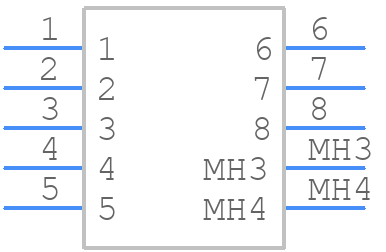

RJE58-188-5401 - Amphenol - PCB symbol
click to zoom
PCB Footprints

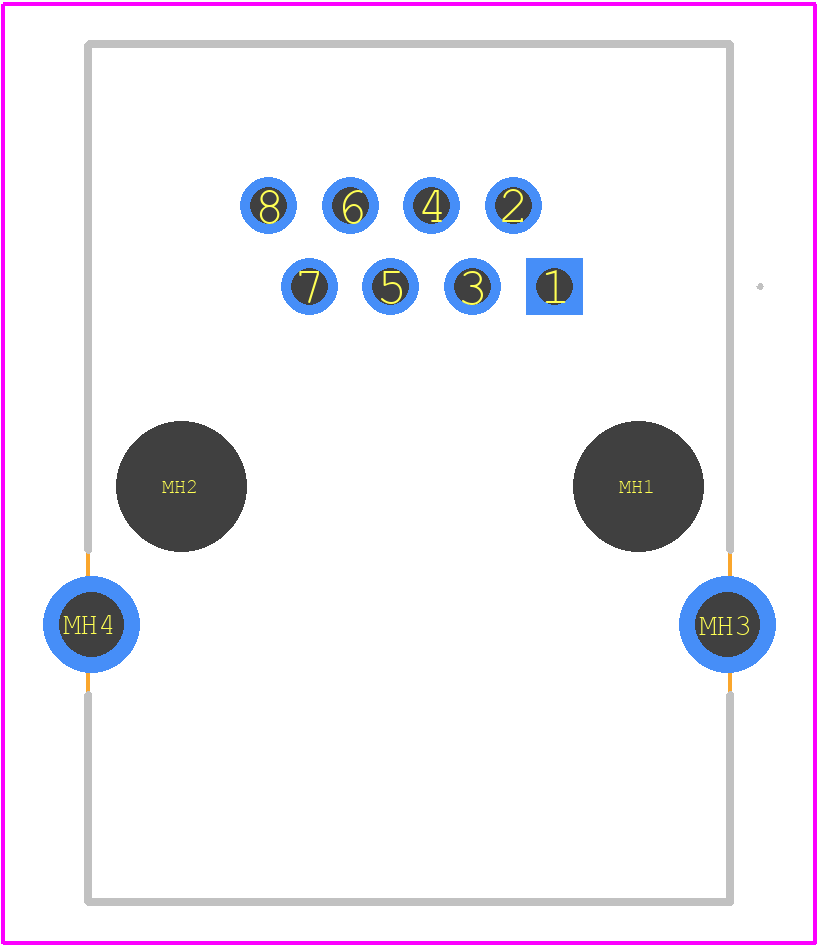

RJE58-188-5401 - Amphenol PCB footprint - Other - Other - RJE58-188-5401-2
click to zoom
3D Models
RJE58-188-5401 - Amphenol - 3D model - Other - RJE58-188-5401-2
click to zoom

RJE58-188-5401 Details

  • Manufacturer Part Number:

    RJE58-188-5401

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Corporation

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.547 inch

  • Body Depth:

    0.846 inch

  • Body Length:

    0.631 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Style:

    TELCOM, MODULAR

  • Dielectric Withstanding Voltage:

    1400VAC V

  • Insulation Resistance:

    500000000 Ω

  • Insulator Material:

    POLYETHYLENE

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    STAGGERED

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    1.25 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    STAINLESS STEEL

  • Terminal Length:

    0.1 inch

  • Terminal Pitch:

    2.032 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

RJE58-188-5401 Frequently Asked Questions (FAQs)

  • The recommended torque value for the RJE58-188-5401 connector is 10-12 in-lbs (1.1-1.4 Nm) for the screw locks, and 15-18 in-lbs (1.7-2.0 Nm) for the backshell.
  • Yes, the RJE58-188-5401 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
  • Yes, the RJE58-188-5401 connector is designed to operate in harsh environments, with a temperature range of -55°C to 150°C and humidity up to 95% RH. However, it's essential to follow the recommended derating guidelines for extreme conditions.
  • The RJE58-188-5401 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the RJE58-188-5401 connector is part of the RJF series, which is compatible with other Amphenol RJF series connectors. However, it's essential to verify the specific part number and configuration to ensure compatibility.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RJE58-188-5401 Overview

Use the download button to access the RJE58-188-5401 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RJE58, or try a keyword search, such as Telecom and Datacom Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
