Part Image

RJHSE-5380-02 - Amphenol

Description: AMPHENOL COMMERCIAL PRODUCTS - RJHSE-5380-02 - JACK, RJ45, SHIELD, 2PORT

Download RJHSE-5380-02 Model

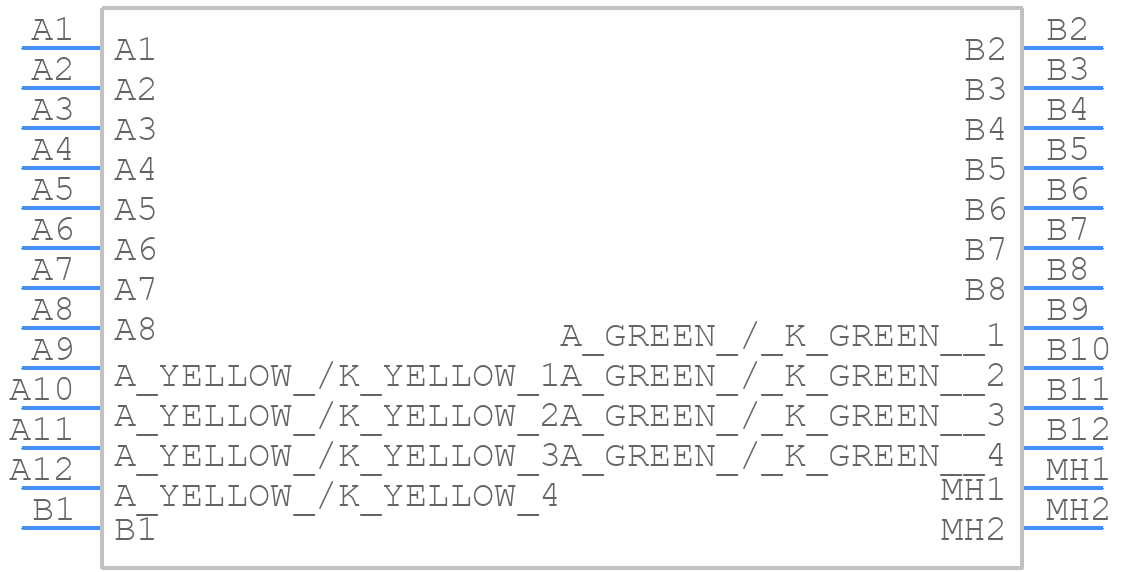

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

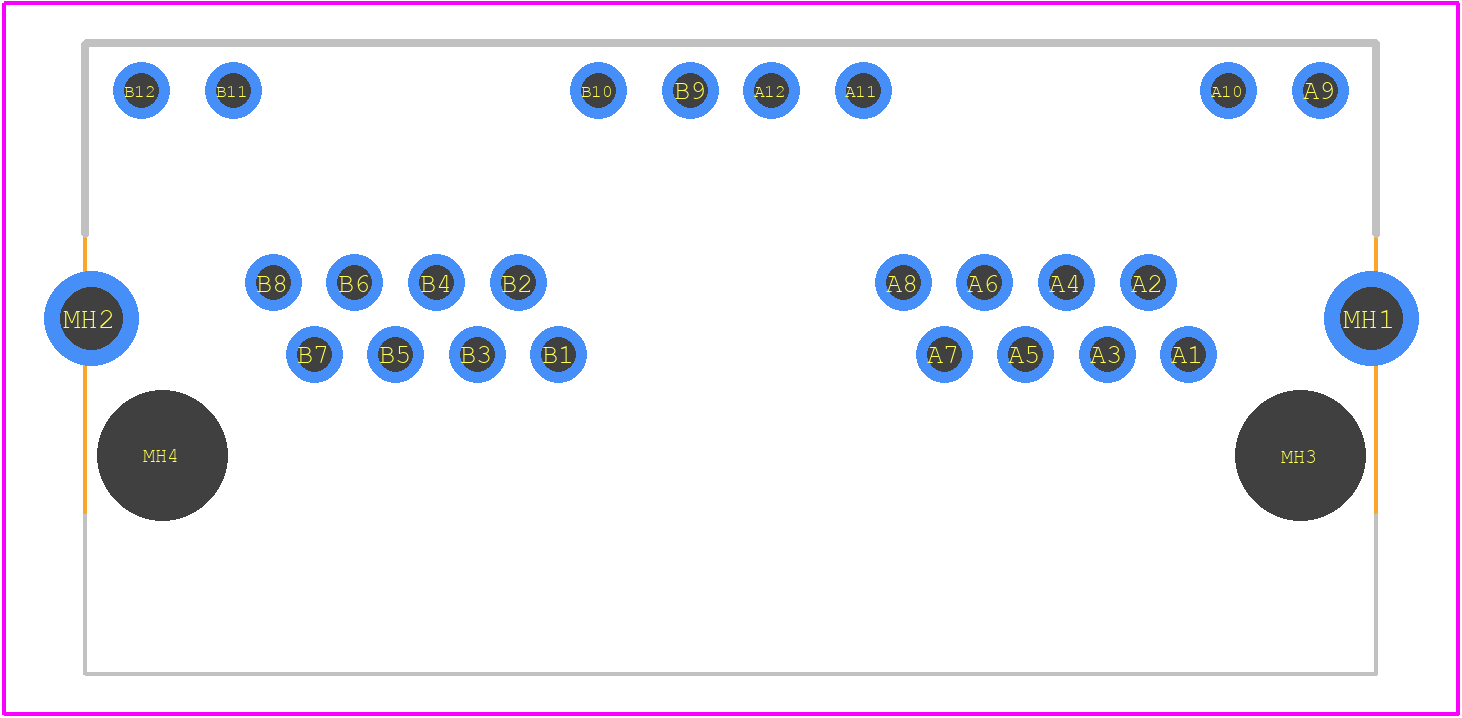

RJHSE-5380-02 - Amphenol PCB footprint - Other - Other - RJHSE-5380-02-2
click to zoom
3D Models
RJHSE-5380-02 - Amphenol  - 3D model - Other - RJHSE-5380-02-2
click to zoom

RJHSE-5380-02 Details

  • Manufacturer Part Number:

    RJHSE-5380-02

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Corporation

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.53 inch

  • Body Depth:

    0.62 inch

  • Body Length:

    1.27 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    TELCOM, MODULAR

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Durability:

    750 Cycles

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    MOUNTING FLANGE

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    STAGGERED

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Shell Material:

    COPPER ALLOY

  • Terminal Length:

    0.1 inch

  • Terminal Pitch:

    2.032 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RJHSE-5380-02 Overview

Use the download button to access the RJHSE-5380-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RJHSE, or try a keyword search, such as Telecom and Datacom Connectors
