RJK5030DPP-M0#T2 - Renesas Electronics

Description: MOSFETs suitable for switching (motor drive, etc.) and load switch applications. Low on-resistance, high-speed switching, and high-robustness.

Download RJK5030DPP-M0#T2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

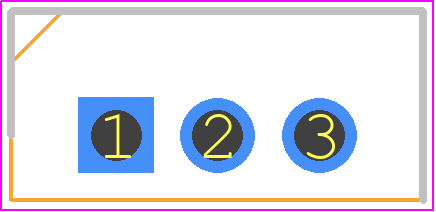

RJK5030DPP-M0#T2 - Renesas Electronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - PRSS0003AF-A
click to zoom
3D Models
RJK5030DPP-M0#T2 - Renesas Electronics  - 3D model - Transistor Outline, Vertical - PRSS0003AF-A
click to zoom

RJK5030DPP-M0#T2 Details

  • Manufacturer Part Number:

    RJK5030DPP-M0#T2

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    TO-220FL

  • Pin Count:

    3

  • Manufacturer Package Code:

    PRSS0003AF

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    1

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    500 V

  • Drain Current-Max (ID):

    5 A

  • Drain-source On Resistance-Max:

    1.6 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    10 pF

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Packing Method:

    TUBE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    28.5 W

  • Pulsed Drain Current-Max (IDM):

    20 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
