RJK6014DPP-A0#T2 - Renesas Electronics

RJK6014DPP-A0#T2 Details

• Manufacturer Part Number:

  RJK6014DPP-A0#T2

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

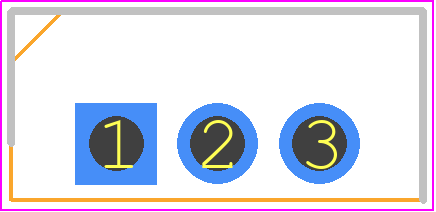

• Part Package Code:

  TO-220FPA

• Package Description:

  TO-220FPA, 3 PIN

• Pin Count:

  3

• Manufacturer Package Code:

  PRSS0003AP

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  6

• Additional Feature:

  TUBE

• Case Connection:

  ISOLATED

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  600 V

• Drain Current-Max (ID):

  16 A

• Drain-source On Resistance-Max:

  0.575 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  20 pF

• JEDEC-95 Code:

  TO-220AB

• JESD-30 Code:

  R-PSFM-T3

• Number of Elements:

  1

• Number of Terminals:

  3

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Packing Method:

  BOX

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  35 W

• Pulsed Drain Current-Max (IDM):

  32 A

• Surface Mount:

  NO

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
