Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RJSSE-5380-02
- Part Number RJSSE-5380-02
- Manufacturer Amphenol
- Pin Count 18
- Part Category Connector
- Package Category Other
- Footprint Name Other - RJSSE-5380-02-2
- Released Date Feb 13, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RJSSE-5380-02 Details
-
Manufacturer Part Number:
RJSSE-5380-02
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Unknown
-
Country Of Origin:
India
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
7 Weeks
-
Manufacturer:
Amphenol Corporation
-
YTEOL:
7.79
-
Board Mounting Option:
PEG
RJSSE-5380-02 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.8 Nm (4.4-7.0 in-lbs).
-
Yes, the RJSSE-5380-02 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
-
Yes, the RJSSE-5380-02 connector is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and humidity up to 95% RH. However, it's essential to follow the recommended derating guidelines for high-temperature applications.
-
The RJSSE-5380-02 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent connections and disconnections.
-
Yes, the RJSSE-5380-02 connector is part of the RJSS series, which is compatible with other RJSS connectors from Amphenol Corporation. However, it's essential to verify the specific part number and configuration to ensure compatibility.
Trust Checks
Expert Contribution
System Verified
Community Approved
RJSSE-5380-02 Overview

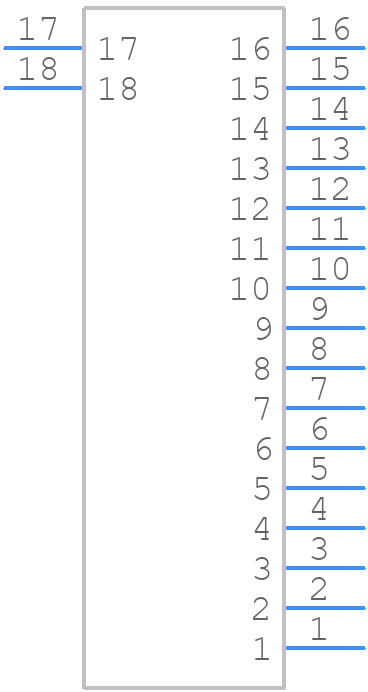

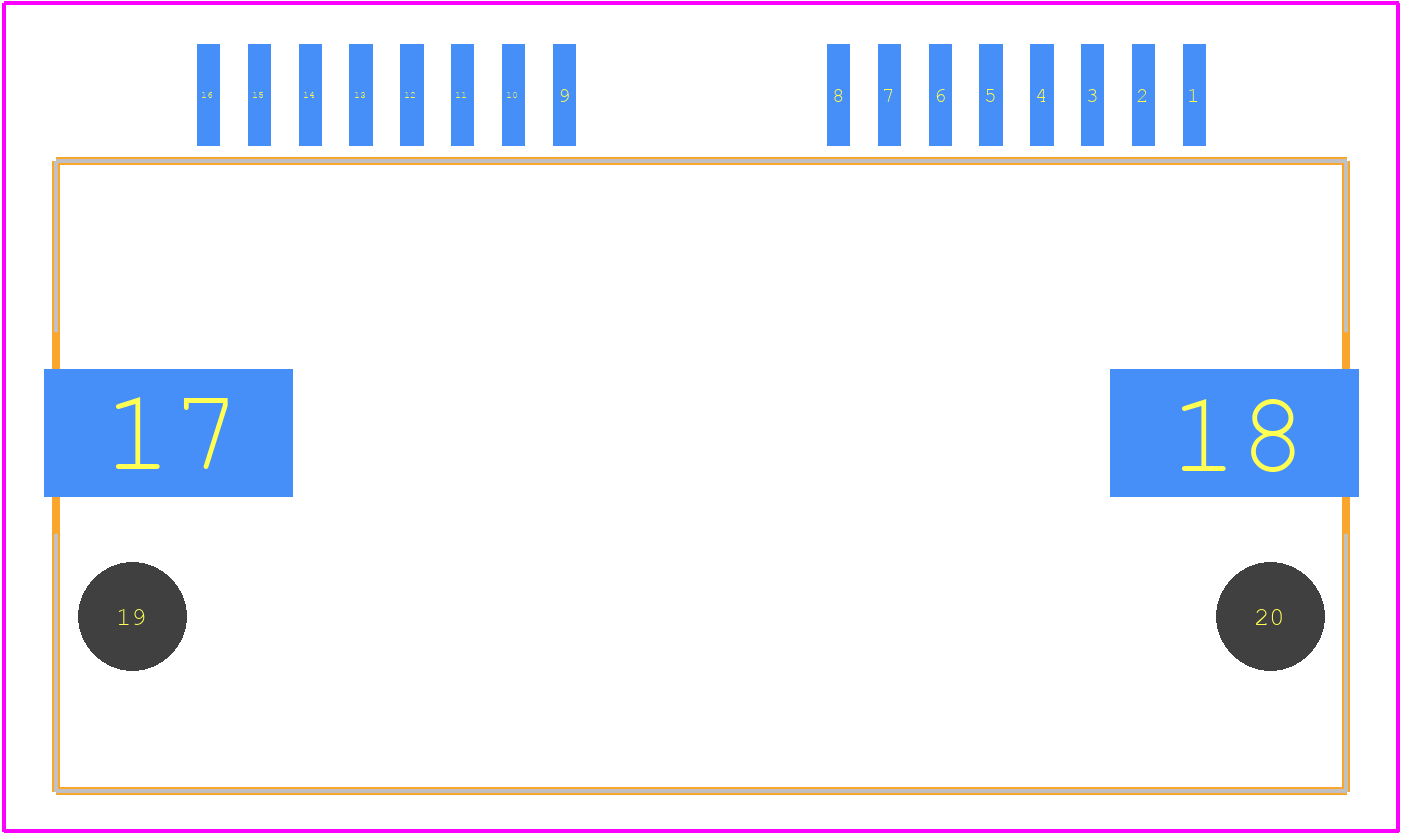

Use the download button to access the RJSSE-5380-02 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like RJSSE,
or try a keyword search, such as Other Interconnects
