RK1-12V footprint, schematic symbol and 3D model by Panasonic

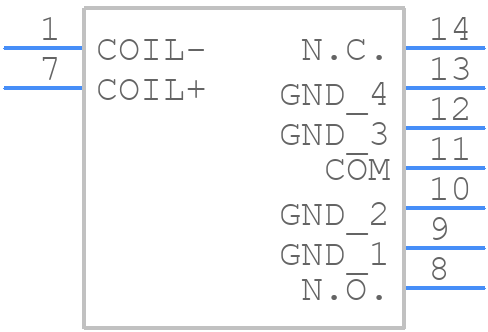

Symbol

PCB Footprints

3D Models

RK1-12V Details

Manufacturer Part Number:
RK1-12V
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.41.00.20
Manufacturer:
Panasonic Electronic Components
YTEOL:
0
Additional Feature:
HIGH FREQUENCY CHARACTERISTICS FOR 75 OHMS ALSO AVAILABLE, VSWR AND INSERTION LOSS TAKEN AT 900 MHZ
Body Breadth:
11.2 mm
Body Height:
9.7 mm
Body Length or Diameter:
20.2 mm
Characteristic Impedance:
50 Ω
Coil Current(DC)-Max:
0.017 A
Coil Operate Voltage(DC):
9 V
Coil Power:
200 mW
Coil Release Voltage(DC):
1.2 V
Coil Resistance:
720 Ω
Coil Voltage(DC)-Max:
12 V
Coil/Input Supply Type:
DC
Contact Current(DC)-Max:
0.5 A
Contact (DC) Max Rating R Load:
.5A@30VDC
Contact Voltage(DC)-Max:
30 V
Contact/Output Supply Type:
DC
Electrical Life:
300000 Cycle(s)
Input Power-Max:
10 W
Insertion Loss-Max:
0.3 dB
Isolation-Max:
60 dB
JESD-609 Code:
e4
Mounting Feature:
THROUGH HOLE-STRAIGHT MOUNT
Operate Time:
10 ms
Operating Frequency-Max:
1500 MHz
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BULK
Physical Dimension:
20.2mm x 11.2mm x 9.7mm
Relay Action:
MOMENTARY
Relay Function:
SPDT
Relay Type:
RF RELAY
Release Time:
6 ms
Surface Mount:
NO
Switching Time:
16 ms
Terminal Finish:
Gold (Au)
Termination Type:
SOLDER
VSWR:
1.5

The maximum switching frequency of the RK1-12V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
The RK1-12V relay is designed to operate in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to consult with Panasonic's application engineers for specific guidance on high-temperature applications.
Panasonic recommends a minimum spacing of 1.5 mm between the relay and other components on the PCB to ensure proper heat dissipation and to prevent electrical interference. A recommended PCB layout is available in the relay's datasheet or through consultation with Panasonic's application engineers.
The RK1-12V relay is designed to withstand vibrations up to 10 G (10-55 Hz). However, it's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific vibration environment.
The recommended derating curve for the RK1-12V relay is available in the relay's datasheet or through consultation with Panasonic's application engineers. The derating curve provides guidance on reducing the relay's operating voltage and current to ensure reliable operation and extend its lifespan.

Community Provided

System Verified

Community Approved

Use the download button to access the RK1-12V schematic symbol, PCB footprint, and 3D model.
