The recommended land pattern for the RLF12560T-1R9N120 can be found in the TDK Corporation's application note or on their website. It typically includes a rectangular pad with a size of around 3.5mm x 2.5mm, with a 0.5mm clearance around the pad.
The RLF12560T-1R9N120 has a maximum operating temperature of 125°C. To handle thermal considerations, ensure good airflow around the inductor, avoid overheating, and consider using a heat sink or thermal interface material if necessary. Also, follow the recommended derating curves for temperature and current.
The self-resonant frequency (SRF) of the RLF12560T-1R9N120 is not explicitly stated in the datasheet. However, it can be estimated using the inductor's inductance value and the parasitic capacitance. Typically, the SRF is around 100-200 MHz for this inductor.
The RLF12560T-1R9N120 is designed for high-frequency applications up to several hundred MHz. However, its performance may degrade at very high frequencies (e.g., above 1 GHz) due to the inductor's parasitic capacitance and resistance. Consult the datasheet and application notes for more information.
To ensure the reliability and lifespan of the RLF12560T-1R9N120, follow proper storage and handling procedures, avoid mechanical stress, and operate the inductor within its specified ratings (e.g., current, voltage, and temperature). Also, consider using a conformal coating or potting compound to protect the inductor from environmental factors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RLF12560T-1R9N120 Overview

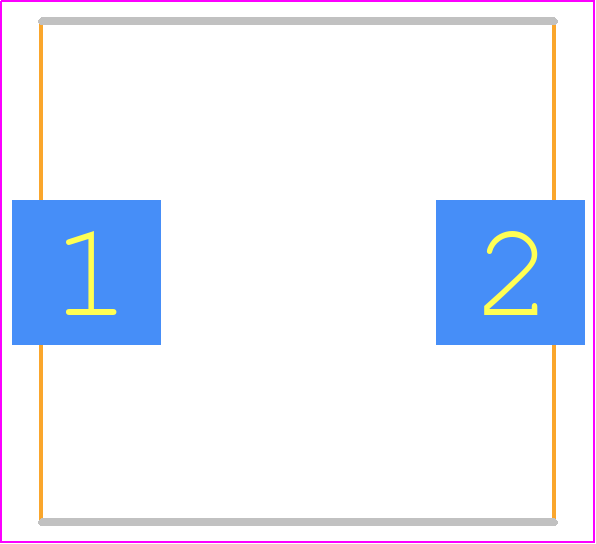

Use the download button to access the RLF12560T-1R9N120 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RLF12,
or try a keyword search, such as Fixed Inductors
