Part Image

RLM-23-1WL+ - Mini-Circuits

Description: +5 to +30 dBm Limiter 50Ω Broadband 100 to 2500 MHz

Download RLM-23-1WL+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

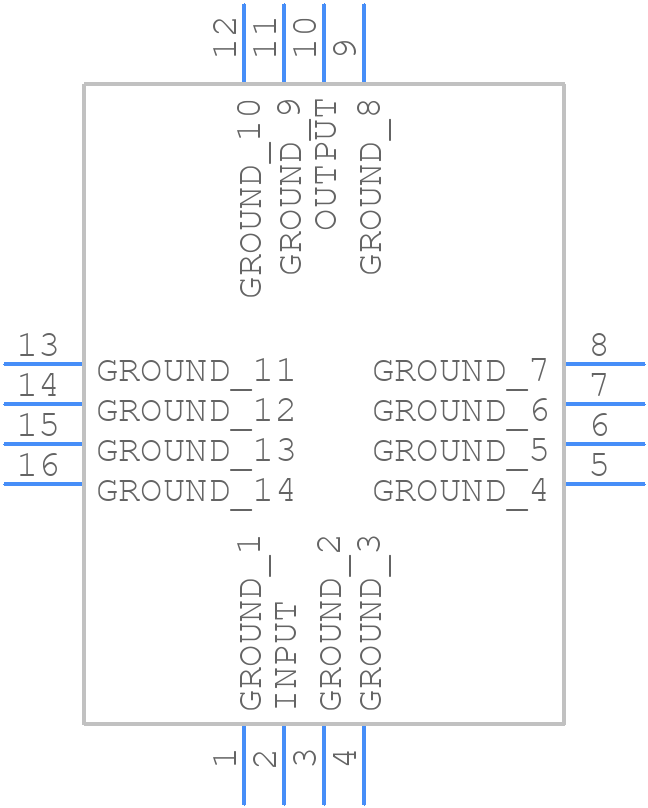

Symbol
RLM-23-1WL+ - Mini-Circuits - PCB symbol
click to zoom

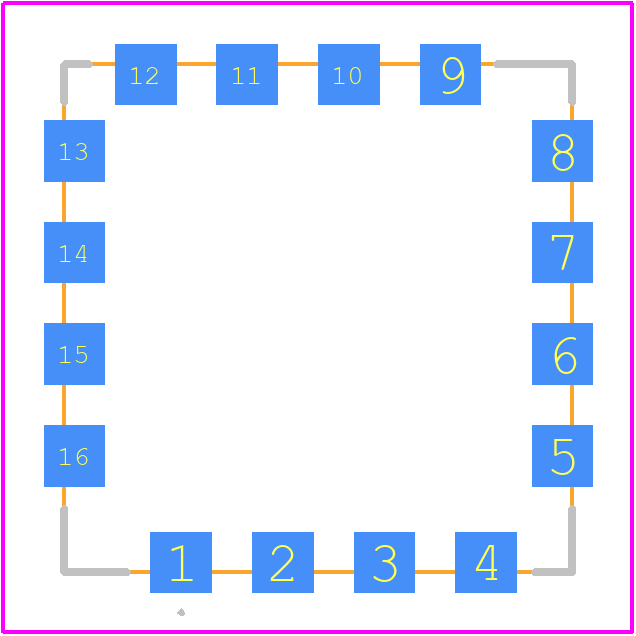

PCB Footprints
RLM-23-1WL+ - Mini-Circuits PCB footprint - Other - Other - CK1246-1_2024
click to zoom
3D Models
RLM-23-1WL+ - Mini-Circuits - 3D model - Other - CK1246-1_2024
click to zoom

RLM-23-1WL+ Details

  • Manufacturer Part Number:

    RLM-23-1WL+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Additional Feature:

    LOW NOISE

  • Adjustability:

    FIXED

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Input Power-Min (CW):

    5 dBm

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    LIMITER

  • VSWR-Max:

    1.6

RLM-23-1WL+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the RLM-23-1WL+ is -40°C to +85°C.
  • Yes, the RLM-23-1WL+ is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The typical insertion loss of the RLM-23-1WL+ is around 0.5 dB, but this can vary depending on the specific application and frequency range.
  • The RLM-23-1WL+ is designed for low-power applications, and its maximum power rating is 1 watt. It is not suitable for high-power applications.
  • The RLM-23-1WL+ is designed for indoor use, but it can be used outdoors if properly sealed and protected from environmental factors such as moisture and extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RLM-23-1WL+ Overview

Use the download button to access the RLM-23-1WL+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RLM-2, or try a keyword search, such as RF/Microwave Limiters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
