RLM-512-4WL+ - Mini-Circuits

Description: RF Wireless Misc LIMITER / SURF MOUNT / RoHS +5 to +36 dBm 50Ω Broadband 50 to 512 MHz

Download RLM-512-4WL+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

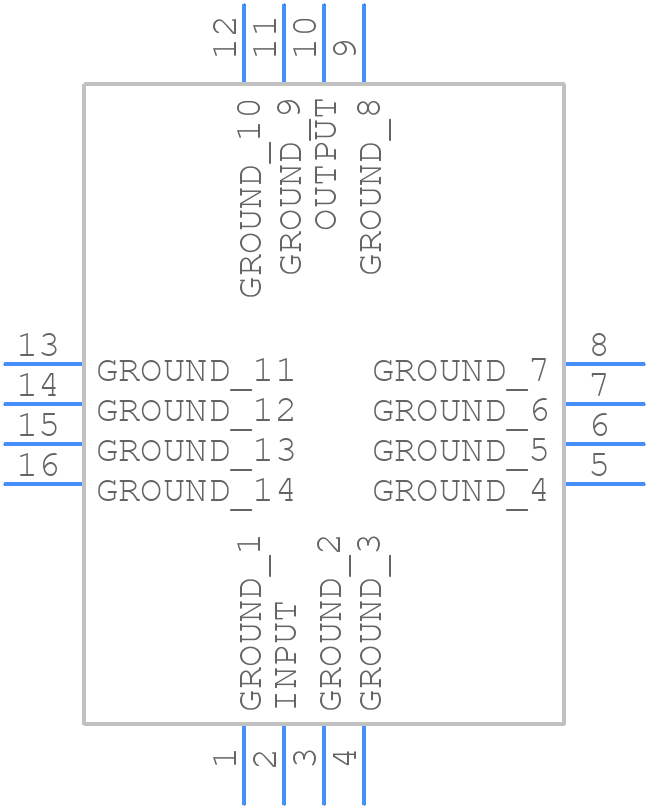

Symbol
RLM-512-4WL+ - Mini-Circuits - PCB symbol
click to zoom

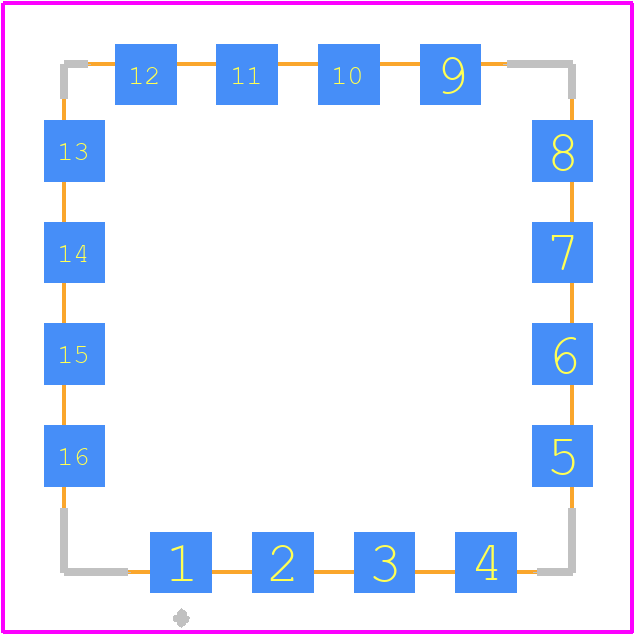

PCB Footprints
RLM-512-4WL+ - Mini-Circuits PCB footprint - Other - Other - RLM-512-4WL+-1
click to zoom
3D Models
RLM-512-4WL+ - Mini-Circuits - 3D model - Other - RLM-512-4WL+-1
click to zoom

RLM-512-4WL+ Details

  • Manufacturer Part Number:

    RLM-512-4WL+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Additional Feature:

    HIGH RELIABILITY

  • Adjustability:

    FIXED

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    36 dBm

  • Input Power-Min (CW):

    5 dBm

  • Operating Frequency-Max:

    512 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Max:

    3 dBm

  • RF/Microwave Device Type:

    LIMITER

  • VSWR-Max:

    1.85

RLM-512-4WL+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The RLM-512-4WL+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network of resistors, capacitors, and inductors to transform the impedance of your system to 50 ohms. You can use online impedance matching tools or consult with an RF engineer for assistance.
  • The RLM-512-4WL+ can handle up to 2W of continuous power. However, it's essential to derate the power handling based on the operating frequency, temperature, and other environmental factors to ensure reliable operation.
  • Yes, the RLM-512-4WL+ is designed for high-reliability applications and is suitable for use in space-constrained environments. However, it's essential to consult with Mini-Circuits' sales team or application engineers to discuss specific requirements and ensure the device meets your needs.
  • To troubleshoot issues with the RLM-512-4WL+, start by checking the power supply, input and output connections, and PCB layout. Use a spectrum analyzer or network analyzer to measure the device's performance and identify any anomalies. Consult Mini-Circuits' application notes and technical support resources for further assistance.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

RLM-512-4WL+ Overview

Use the download button to access the RLM-512-4WL+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RLM-5, or try a keyword search, such as RF/Microwave Limiters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
