- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RLP-105+
- Part Number RLP-105+
- Manufacturer Mini-Circuits
- Pin Count 8
- Part Category Filter
- Package Category Other
- Footprint Name Other - GP731_2024
- Released Date Jul 30, 2017
- Last Modified Date Aug 22, 2024 12:42 PM UTC
- Pinout / Pin List Click Here (Member Only)
RLP-105+ Details
-
Manufacturer Part Number:
RLP-105+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6.94
-
Attenuation Frequency-Max:
1000 MHz
-
Attenuation Frequency-Min:
145 MHz
-
Attenuation@Freq-Max:
40 dB
-
Attenuation@Freq-Min:
20 dB
-
Average Input Power:
0.5 W
RLP-105+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint for RLP-105+ in their application notes. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
While RLP-105+ is designed for 50 ohm systems, it can be used in non-50 ohm systems with some performance degradation. However, it's crucial to consider the impedance mismatch and its impact on the overall system performance.
-
RLP-105+ can generate significant heat during operation. It's essential to provide adequate heat sinking and thermal management to prevent overheating and ensure reliable operation.
-
The maximum operating temperature for RLP-105+ is 85°C. Operating the device above this temperature can lead to reduced performance, reliability issues, and even permanent damage.
-
RLP-105+ is designed to withstand moderate vibration levels. However, in high-vibration environments, it's essential to ensure the device is properly secured and consider additional mechanical support to prevent damage or performance degradation.
Trust Checks
Expert Contribution
System Verified
Community Approved
RLP-105+ Overview

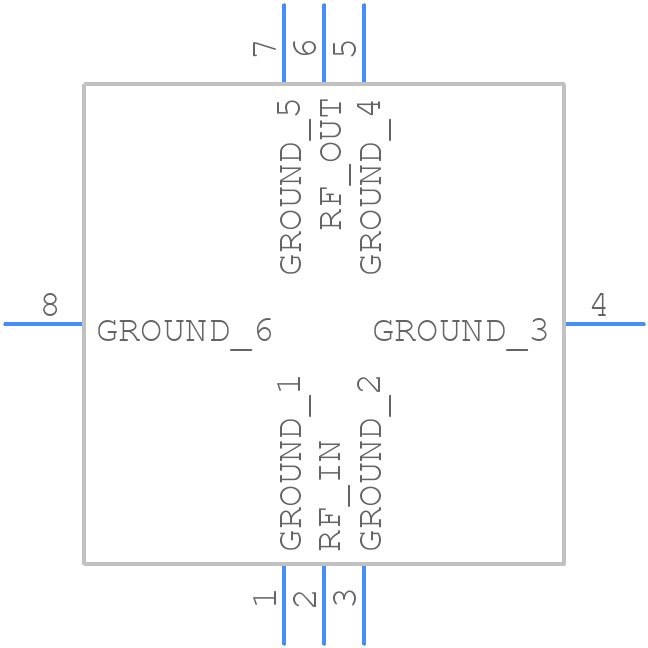

Use the download button to access the RLP-105+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RLP-1,
or try a keyword search, such as General Purpose Passive Filters
