RLP-158+ - Mini-Circuits

Description: 172MHz (Cutoff) Frequency Low Pass RF Filter (Radio Frequency) Bandwidth 8-SMD, No Lead

Download RLP-158+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

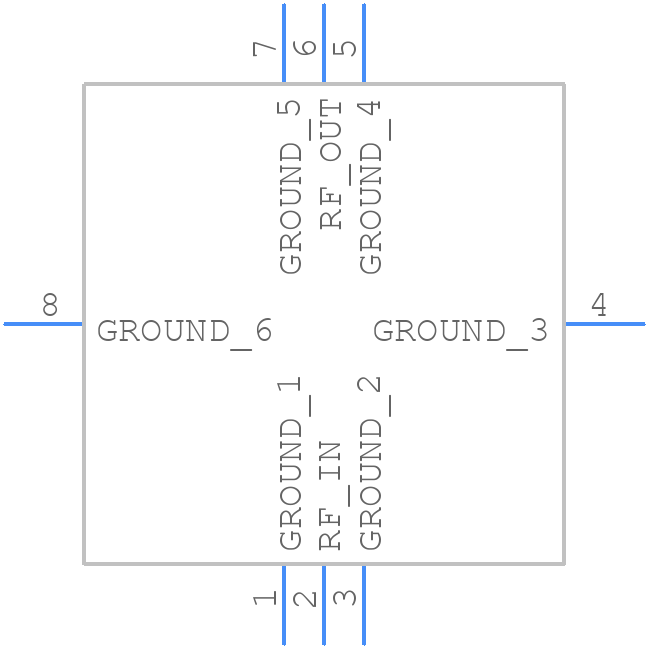

RLP-158+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RLP-158+ - Mini-Circuits PCB footprint - Other - Other - RLP-158+-3
click to zoom
3D Models
RLP-158+ - Mini-Circuits - 3D model - Other - RLP-158+-3
click to zoom

RLP-158+ Details

  • Manufacturer Part Number:

    RLP-158+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.94

  • Attenuation Frequency-Max:

    1000 MHz

  • Attenuation Frequency-Min:

    220 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    172 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    2.54 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    8.89 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7/13 INCH

  • VSWR:

    1.1

  • Width:

    8.89 mm

RLP-158+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 50-ohm microstrip line with a width of 0.035 inches (0.89 mm) and a substrate thickness of 0.031 inches (0.79 mm) for optimal performance. Additionally, it's recommended to keep the component away from any nearby metal objects or vias to minimize parasitic effects.
  • While RLP-158+ is designed for 50-ohm systems, it can be used in non-50-ohm systems with some performance degradation. However, the impedance mismatch will result in reduced power handling and potentially higher insertion loss. It's recommended to consult with Mini-Circuits' application engineers for specific guidance on using RLP-158+ in non-50-ohm systems.
  • The maximum operating temperature for RLP-158+ is 125°C. However, the device's performance may degrade at higher temperatures, and it's recommended to derate the power handling accordingly. Consult the datasheet for more information on temperature derating.
  • RLP-158+ is a commercial-grade component and may not meet the requirements for high-reliability or space-grade applications. Mini-Circuits offers other products that are specifically designed for these applications, such as the RLP-158S+ or RLP-158M+. Consult with Mini-Circuits' application engineers for more information on their high-reliability or space-grade products.
  • The typical lead time for RLP-158+ is 2-4 weeks, depending on the quantity and availability. However, lead times may vary depending on the region and distributor. It's recommended to check with authorized distributors or Mini-Circuits' sales team for the most up-to-date lead time information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RLP-158+ Overview

Use the download button to access the RLP-158+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RLP-1, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
