RLP-190+ - Mini-Circuits

Description: 220MHz (Cutoff) Frequency Low Pass RF Filter (Radio Frequency) Bandwidth 8-SMD, No Lead

Download RLP-190+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

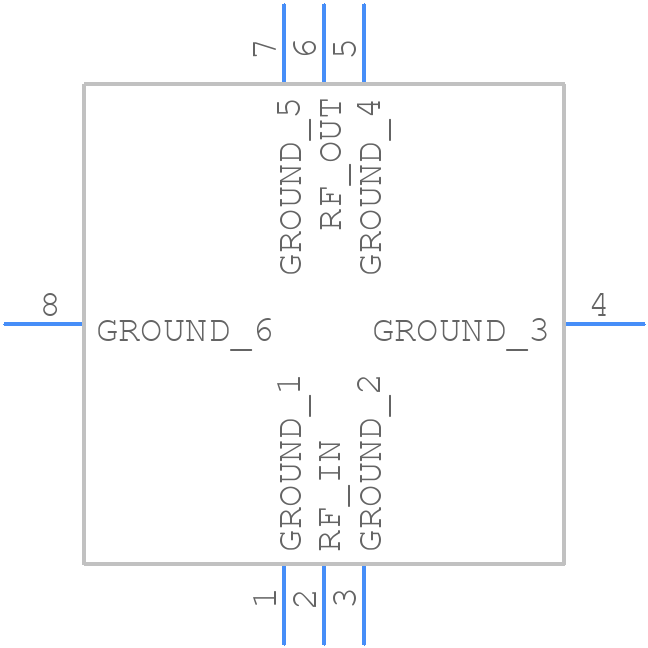

RLP-190+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RLP-190+ - Mini-Circuits PCB footprint - Other - Other - RLP-190+-2
click to zoom
3D Models
RLP-190+ - Mini-Circuits - 3D model - Other - RLP-190+-2
click to zoom

RLP-190+ Details

  • Manufacturer Part Number:

    RLP-190+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Attenuation Frequency-Max:

    1300 MHz

  • Attenuation Frequency-Min:

    264 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    220 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    2.54 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2 dB

  • Length:

    8.89 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7/13 INCH

  • VSWR:

    1.1

  • Width:

    8.89 mm

RLP-190+ Frequently Asked Questions (FAQs)

  • The maximum power handling of RLP-190+ is 1 watt. Exceeding this power limit may cause damage to the filter or affect its performance.
  • RLP-190+ is designed to operate from -40°C to +85°C. While it can tolerate high temperatures, prolonged exposure to temperatures above 85°C may affect its performance and reliability.
  • RLP-190+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a resistive pad to match the filter's impedance to your system's impedance, ensuring maximum power transfer and minimal reflections.
  • The typical group delay of RLP-190+ is around 10-15 ns. This value may vary depending on the frequency and operating conditions.
  • RLP-190+ is designed to withstand moderate vibrations. However, extreme vibrations may affect its performance or cause mechanical damage. It's recommended to secure the filter properly and follow Mini-Circuits' guidelines for vibration testing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RLP-190+ Overview

Use the download button to access the RLP-190+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RLP-1, or try a keyword search, such as General Purpose Passive Filters
