RLP-216+ - Mini-Circuits

Description: Signal Conditioning Lumped LC Low Pass Filter, DC - 216 MHz, 50 ohms

Download RLP-216+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

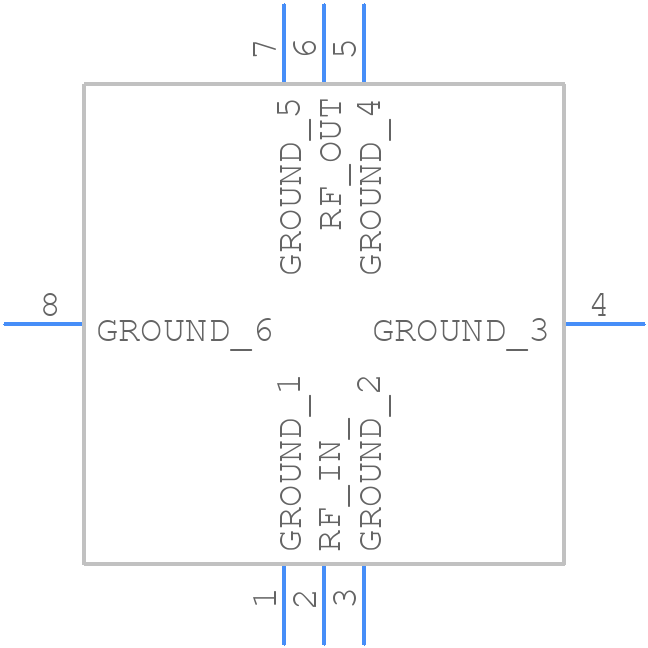

Symbol
RLP-216+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RLP-216+ - Mini-Circuits PCB footprint - Other - Other - RLP-216+-2
click to zoom
3D Models
RLP-216+ - Mini-Circuits - 3D model - Other - RLP-216+-2
click to zoom

RLP-216+ Details

  • Manufacturer Part Number:

    RLP-216+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.94

  • Attenuation Frequency-Max:

    1300 MHz

  • Attenuation Frequency-Min:

    295 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    232 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    2.54 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    8.89 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.1

  • Width:

    8.89 mm

RLP-216+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature of RLP-216+ is 85°C, as per the manufacturer's recommendation.
  • Yes, RLP-216+ is designed for high-reliability applications and is suitable for use in aerospace, defense, and other critical systems.
  • The typical insertion loss of RLP-216+ is around 0.5 dB, but this can vary depending on the specific frequency and operating conditions.
  • Yes, RLP-216+ is designed to handle high-power signals up to 1W, making it suitable for use in high-power RF and microwave applications.
  • RLP-216+ is designed to operate in a wide range of environmental conditions, including high humidity, but it's still important to follow proper storage and handling procedures to prevent moisture damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RLP-216+ Overview

Use the download button to access the RLP-216+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RLP-2, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
