RLP-470+ - Mini-Circuits

Description: Lumped LC Low Pass Filter, DC - 470 MHz, 50Ω

Download RLP-470+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

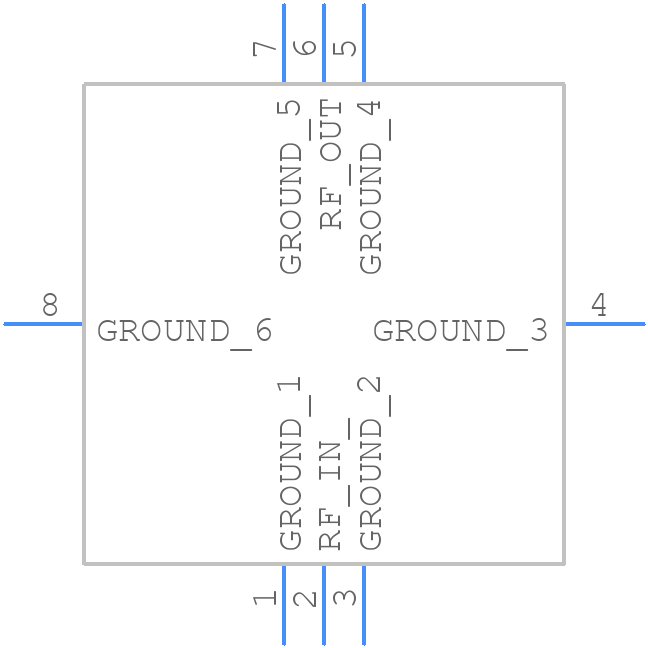

Symbol
RLP-470+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RLP-470+ - Mini-Circuits PCB footprint - Other - Other - GP731_2025
click to zoom
3D Models
RLP-470+ - Mini-Circuits - 3D model - Other - GP731_2025
click to zoom

RLP-470+ Details

  • Manufacturer Part Number:

    RLP-470+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, METAL, CASE GP731, 8 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Attenuation Frequency-Max:

    2000 MHz

  • Attenuation Frequency-Min:

    650 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    510 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    2.54 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    8.89 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7/13 INCH

  • VSWR:

    1.15

  • Width:

    8.89 mm

RLP-470+ Frequently Asked Questions (FAQs)

  • The maximum power handling of RLP-470+ is 1 watt. Exceeding this power limit may cause damage to the device or affect its performance.
  • RLP-470+ is designed to operate from -40°C to +85°C. While it can tolerate high temperatures, prolonged exposure above 85°C may affect its performance and reliability.
  • RLP-470+ has a 50 ohm input and output impedance. To impedance match, use a conjugate match or a resistive pad to ensure maximum power transfer and minimal reflections.
  • The typical group delay of RLP-470+ is around 10-20 ns, which is relatively low and suitable for most applications. However, this value may vary depending on the specific frequency and operating conditions.
  • RLP-470+ is a single-ended device, not designed for differential signaling. If you need a differential low-pass filter, consider using a different device or consulting with Mini-Circuits for a custom solution.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RLP-470+ Overview

Use the download button to access the RLP-470+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RLP-4, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
