RLP-70+ - Mini-Circuits

Description: Signal Conditioning LOW PASS FLTR / SURF MT / RoHS

Download RLP-70+ Model

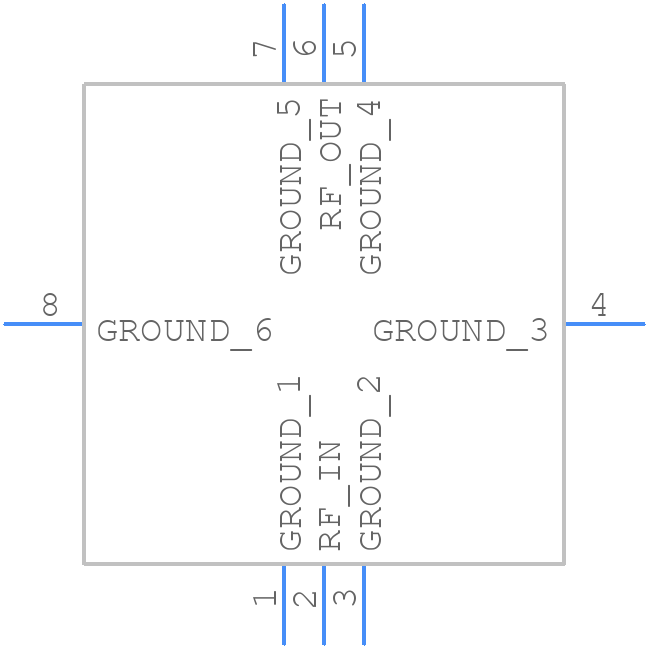

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RLP-70+ - Mini-Circuits PCB footprint - Other - Other - RLP-70+-2
click to zoom
3D Models
RLP-70+ - Mini-Circuits  - 3D model - Other - RLP-70+-2
click to zoom

RLP-70+ Details

  • Manufacturer Part Number:

    RLP-70+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India, USA

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Attenuation Frequency-Max:

    1000 MHz

  • Attenuation Frequency-Min:

    100 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    77 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    2.54 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    8.89 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.1

  • Width:

    8.89 mm

RLP-70+ Frequently Asked Questions (FAQs)

  • The maximum power handling of RLP-70+ is 1 watt. It's essential to ensure that the input power does not exceed this limit to prevent damage to the device.
  • The RLP-70+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network with capacitors and inductors to achieve a conjugate match. You can also use a network analyzer to optimize the match.
  • The operating temperature range of RLP-70+ is -40°C to +85°C. It's essential to ensure that the device operates within this range to maintain its performance and reliability.
  • Yes, RLP-70+ is suitable for high-reliability applications. It's built with high-quality materials and has undergone rigorous testing to ensure its performance and reliability in demanding environments.
  • Use a soldering iron with a temperature of 250°C to 270°C. Apply a small amount of solder to the pads, and ensure that the solder flows smoothly and evenly. Avoid overheating the device or applying excessive force, which can cause damage.
