RM78702 - TE Connectivity

Description: Relay Sockets PC Pin 10A 240VAC Through Hole 2Pole

Download RM78702 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RM78702 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

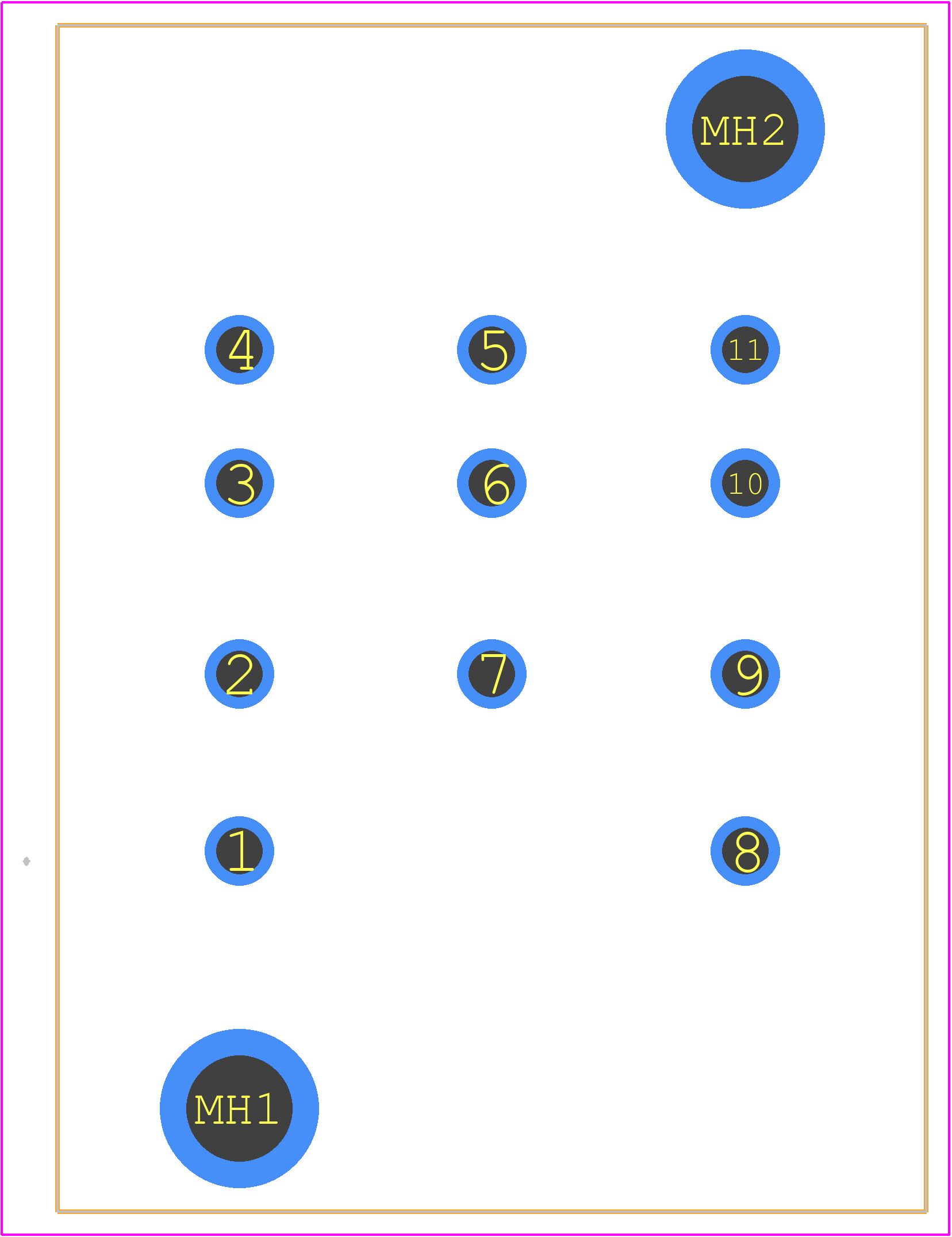

RM78702 - TE Connectivity PCB footprint - Other - Other - RM78702-1
click to zoom
3D Models
RM78702 - TE Connectivity - 3D model - Other - RM78702-1
click to zoom

RM78702 Details

  • Manufacturer Part Number:

    RM78702

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    15 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Device Socket Type:

    IC SOCKET

  • Number of Contacts:

    11

  • Termination Type:

    SOLDER

RM78702 Frequently Asked Questions (FAQs)

  • The recommended torque for the RM78702 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the RM78702 is designed to withstand high-vibration environments, making it suitable for applications such as automotive, aerospace, and industrial control systems.
  • The RM78702 operates in a temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
  • Yes, the RM78702 is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The RM78702 has a mating cycle life of 500 cycles, ensuring reliable connections over an extended period.
