Part Image

RM84-2012-35-1003 - Relpol

Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 8A; 8A/250VAC; 8A/24VDC 22Ω 29x12.7x15.7mm -40...85°C

Download RM84-2012-35-1003 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

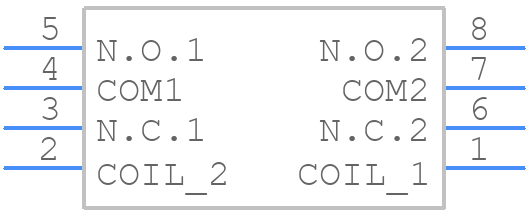

Symbol
RM84-2012-35-1003 - Relpol - PCB symbol
click to zoom

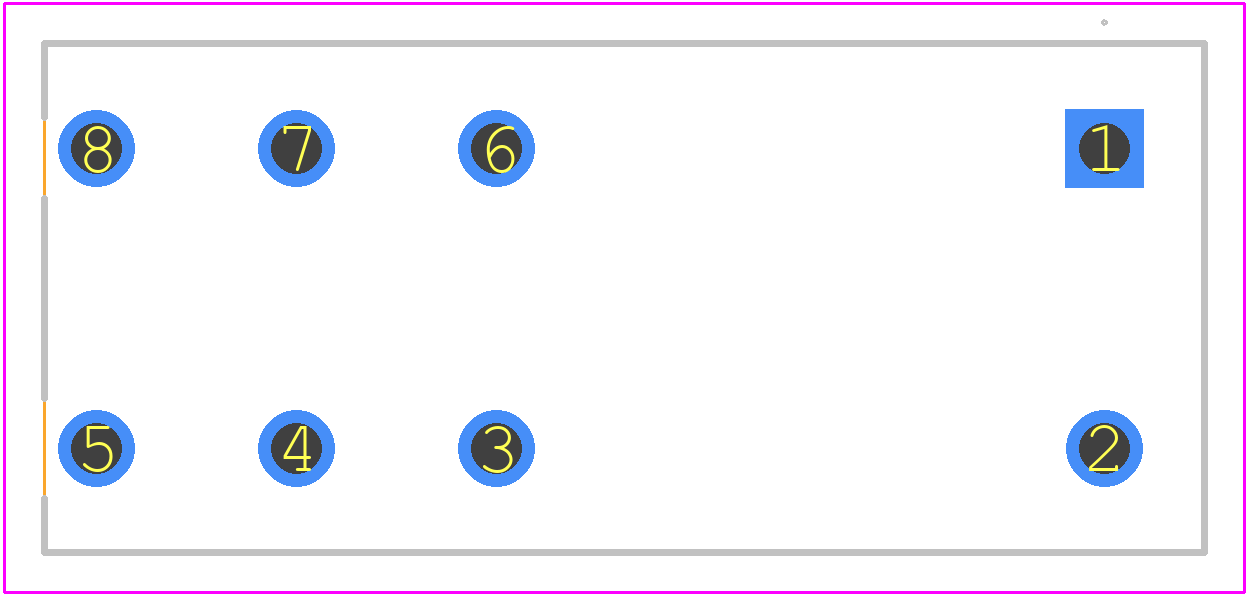

PCB Footprints
RM84-2012-35-1003 - Relpol PCB footprint - Other - Other - RM84-2012-35-1003-1
click to zoom
3D Models
RM84-2012-35-1003 - Relpol - 3D model - Other - RM84-2012-35-1003-1
click to zoom

RM84-2012-35-1003 Details

  • Manufacturer Part Number:

    RM84-2012-35-1003

  • Manufacturer:

    Relpol SA

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RM84-2012-35-1003 Overview

Use the download button to access the RM84-2012-35-1003 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RM84-, or try a keyword search, such as Power/Signal Relays
