Part Image

RM84-2012-35-1012 - Altech

Description: General Purpose Relay DPDT (2 Form C) 12VDC Coil Through Hole , 8A , -40°C ~ 85°C

Download RM84-2012-35-1012 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

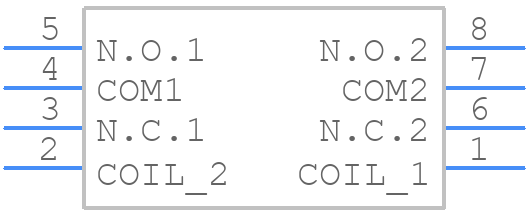

RM84-2012-35-1012 - Altech - PCB symbol
click to zoom
PCB Footprints

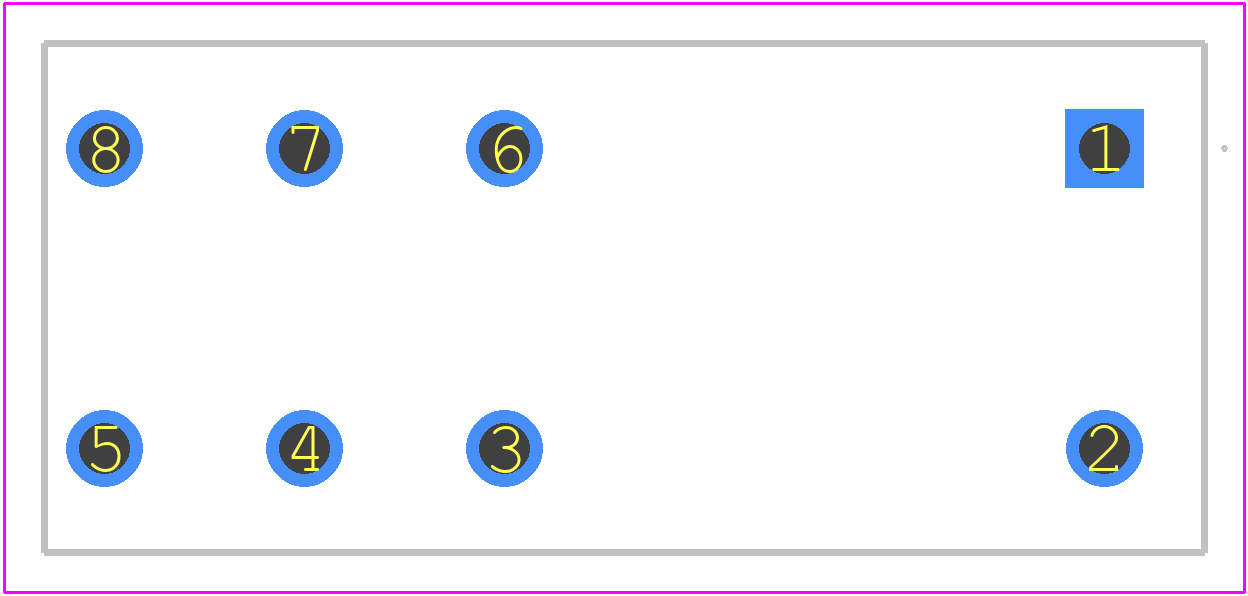

RM84-2012-35-1012 - Altech PCB footprint - Other - Other - RM84-2012-35-1012-1
click to zoom
3D Models
RM84-2012-35-1012 - Altech - 3D model - Other - RM84-2012-35-1012-1
click to zoom

RM84-2012-35-1012 Details

  • Manufacturer Part Number:

    RM84-2012-35-1012

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Altech Corporation

  • YTEOL:

    7

  • Relay Type:

    POWER/SIGNAL RELAY

RM84-2012-35-1012 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the RM84-2012-35-1012 relay module is -40°C to 85°C.
  • Yes, the RM84-2012-35-1012 relay module is designed to withstand vibrations up to 10G (10-2000 Hz) and shocks up to 30G (11ms).
  • The maximum switching frequency for the RM84-2012-35-1012 relay module is 30 operations per minute.
  • Yes, the RM84-2012-35-1012 relay module is designed to operate in humid environments with a relative humidity of up to 95% (non-condensing).
  • The recommended derating curve for the RM84-2012-35-1012 relay module is 1.5A at 40°C, 1A at 60°C, and 0.5A at 80°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RM84-2012-35-1012 Overview

Use the download button to access the RM84-2012-35-1012 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RM84-, or try a keyword search, such as Power/Signal Relays
