RMK-3-153+ - Mini-Circuits

Description: Signal Conditioning FREQ TPLR / SURF MT / RoHS,50Ω Output 7800 to 15000 MHz.

Download RMK-3-153+ Model

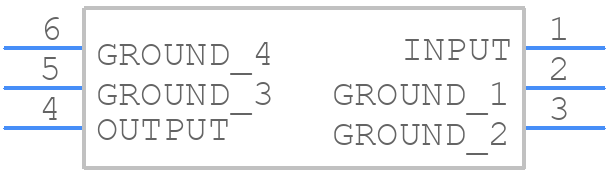

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RMK-3-153+ - Mini-Circuits PCB footprint - Other - Other - RMK-3-153+
click to zoom
3D Models
RMK-3-153+ - Mini-Circuits  - 3D model - Other - RMK-3-153+
click to zoom

RMK-3-153+ Details

  • Manufacturer Part Number:

    RMK-3-153+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE TT1224, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    21 dB

  • Input Power-Max (CW):

    11 dBm

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    5000 MHz

  • Operating Frequency-Min:

    2600 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    FREQUENCY TRIPLER

  • Terminal Finish:

    Gold/Nickel (Au/Ni)

RMK-3-153+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic effects, and prevent thermal issues.
  • Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a set of recommended impedance matching circuits in their application notes. You can also use simulation tools like ADS or AWR to optimize the matching network.
  • While the datasheet doesn't specify a maximum power handling capability, Mini-Circuits recommends derating the power handling based on the operating frequency and temperature. As a general rule, it's recommended to derate the power handling by 1 dB for every 10°C increase in temperature above 25°C.
  • Yes, the RMK-3-153+ is designed to meet the requirements of high-reliability and space-constrained applications. However, it's essential to follow Mini-Circuits' guidelines for screening, testing, and qualification to ensure the device meets the specific requirements of your application.
  • Common issues with the RMK-3-153+ can often be attributed to improper PCB layout, incorrect impedance matching, or poor soldering. Mini-Circuits provides troubleshooting guides and application notes that can help identify and resolve these issues.
