RMK-3-451+ - Mini-Circuits

Description: Signal Conditioning 3X SMT Multiplier, Output Freq 300 - 450 MHz

Download RMK-3-451+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

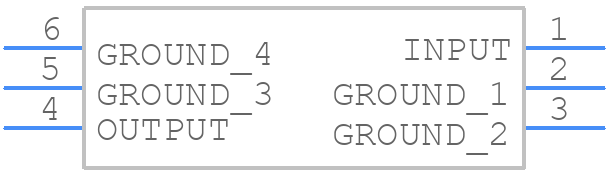

RMK-3-451+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RMK-3-451+ - Mini-Circuits PCB footprint - Other - Other - TT1224_2022-1
click to zoom
3D Models
RMK-3-451+ - Mini-Circuits - 3D model - Other - TT1224_2022-1
click to zoom

RMK-3-451+ Details

  • Manufacturer Part Number:

    RMK-3-451+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE TT1224, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    16 dB

  • Input Power-Max (CW):

    17 dBm

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    150 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    FREQUENCY TRIPLER

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier
