RMK-5-751+ - Mini-Circuits

Description: Multipliers / Dividers 5X SMT Multiplier, Output Freq 500 - 750 MHz

Download RMK-5-751+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

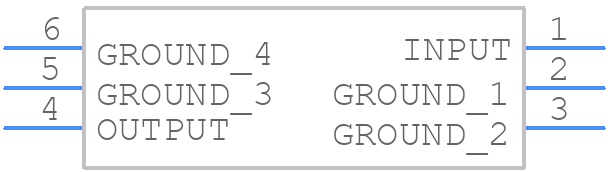

Symbol
RMK-5-751+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RMK-5-751+ - Mini-Circuits PCB footprint - Other - Other - RMK-5-751+-1
click to zoom
3D Models
RMK-5-751+ - Mini-Circuits - 3D model - Other - RMK-5-751+-1
click to zoom

RMK-5-751+ Details

  • Manufacturer Part Number:

    RMK-5-751+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Additional Feature:

    TR, 7 INCH; 200

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    24.5 dB

  • Input Power-Max (CW):

    21 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    750 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    DILCC6,.25

  • RF/Microwave Device Type:

    FREQUENCY PENTA

  • Surface Mount:

    YES

RMK-5-751+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator on their website, which can help you determine the required components and their values.
  • The maximum power handling of the RMK-5-751+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application notes, the device can handle up to 1W of continuous power. It's essential to derate the power handling based on the operating frequency and temperature.
  • Yes, the RMK-5-751+ can be used in switching applications, but it's essential to ensure that the device is properly biased and that the switching frequency is within the recommended range. Mini-Circuits provides guidelines for switching applications in their application notes.
  • The thermal resistance of the RMK-5-751+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application notes, the thermal resistance is approximately 20°C/W. This value can be used to estimate the junction temperature and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RMK-5-751+ Overview

Use the download button to access the RMK-5-751+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RMK-5, or try a keyword search, such as RF/Microwave Frequency Multipliers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
