RMP84-2012-25-1024-WT footprint, schematic symbol and 3D model by Relpol

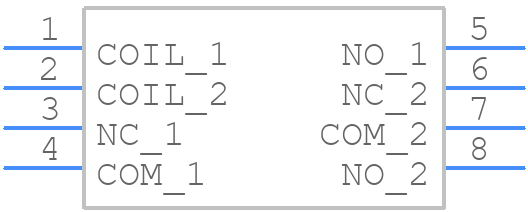

Symbol

click to zoom

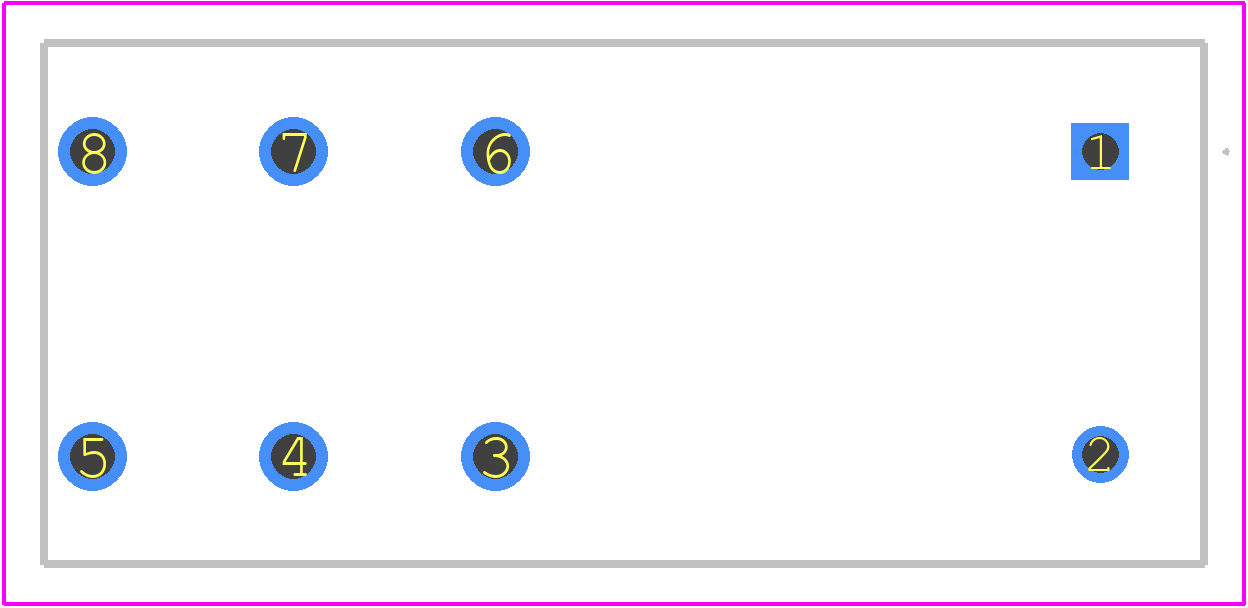

PCB Footprints

RMP84-2012-25-1024-WT - Relpol PCB footprint - Other - Other - RMP84-2012-25-1024-WT-2

click to zoom

3D Models

RMP84-2012-25-1024-WT - Relpol - 3D model - Other - RMP84-2012-25-1024-WT-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RMP84-2012-25-1024-WT
Part Number RMP84-2012-25-1024-WT
Manufacturer Relpol
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - RMP84-2012-25-1024-WT-2
Released Date Aug 2, 2023
Last Modified Date Aug 2, 2023 5:35 AM UTC
Pinout / Pin List Click Here (Member Only)

RMP84-2012-25-1024-WT Details

Manufacturer Part Number:
RMP84-2012-25-1024-WT
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Relpol SA
YTEOL:
6
Relay Type:
POWER/SIGNAL RELAY

Trust Checks

Community Provided

System Verified

Community Approved

RMP84-2012-25-1024-WT Overview

Use the download button to access the RMP84-2012-25-1024-WT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RMP84, or try a keyword search, such as Power/Signal Relays
