RMS-30+ - Mini-Circuits

Description: Frequency Mixer Level 7 (LO Power +7 dBm) 200 to 3000 MHz, CASE STYLE: TT240

Download RMS-30+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

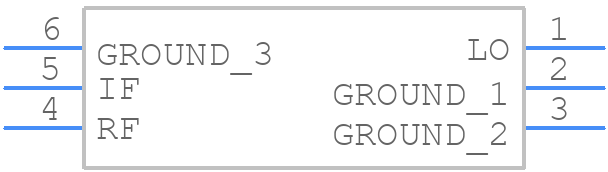

RMS-30+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RMS-30+ - Mini-Circuits PCB footprint - Other - Other - TT240
click to zoom
3D Models
RMS-30+ - Mini-Circuits - 3D model - Other - TT240
click to zoom

RMS-30+ Details

  • Manufacturer Part Number:

    RMS-30+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    9.8 dB

  • Input Power-Max (CW):

    17 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    3000 MHz

  • Operating Frequency-Min:

    200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    DILCC6,.25

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD OVER NICKEL

  • VSWR-Max:

    2.16

RMS-30+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends using a high-quality, high-temperature PCB material like Rogers 4000 series or equivalent, with a thickness of 0.5-1.0 mm for optimal performance and thermal management.
  • Proper thermal management can be achieved by attaching the RMS-30+ to a heat sink or a metal plate, and ensuring good thermal contact between the device and the heat sink. A thermal interface material like thermal tape or thermal grease can be used to improve thermal contact.
  • The maximum power handling of the RMS-30+ is 30 dBm (1W) at 50 ohms, but it's recommended to derate the power handling to 20 dBm (100mW) for long-term reliability and to prevent overheating.
  • Yes, the RMS-30+ can be used in systems with different impedances, but it's recommended to use an impedance matching network to ensure optimal performance and to prevent damage to the device.
  • The recommended soldering temperature for the RMS-30+ is 270°C (520°F) with a maximum time of 10 seconds. It's also recommended to use a soldering iron with a temperature control and a fine tip to prevent overheating and damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RMS-30+ Overview

Use the download button to access the RMS-30+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RMS-3, or try a keyword search, such as RF/Microwave Mixers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
