- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RN112APC
- Part Number RN112APC
- Manufacturer Switchcraft
- Pin Count 3
- Part Category Connector
- Package Category Other

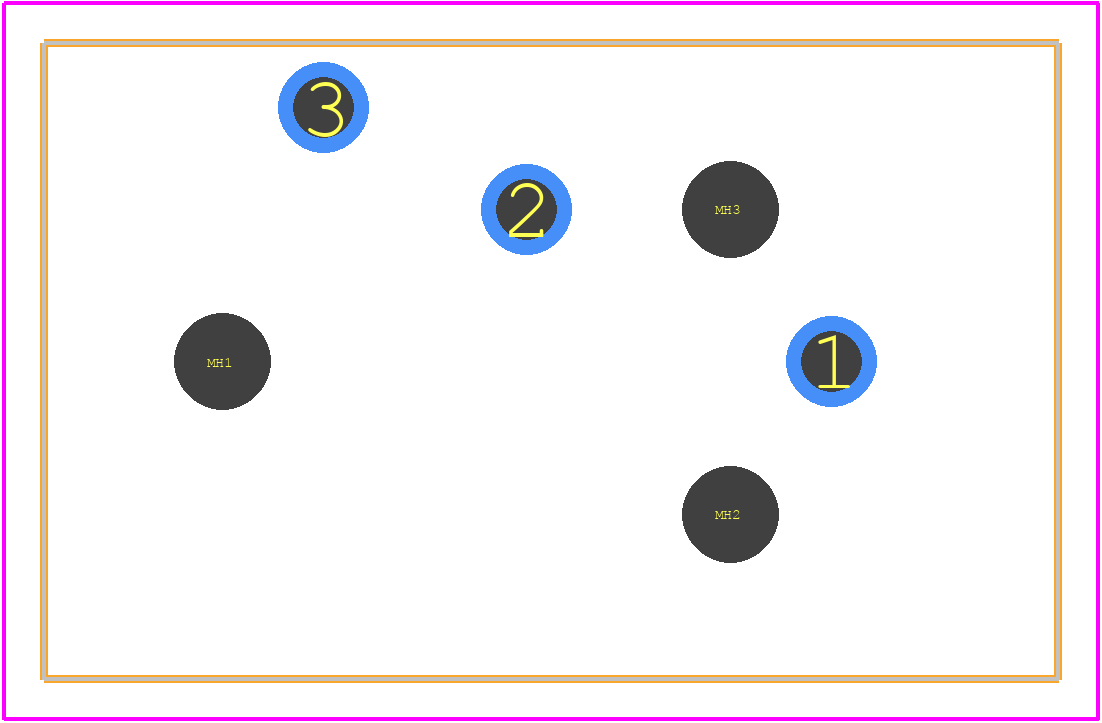

- Footprint Name Other - RN112APC-2
- Released Date Feb 17, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RN112APC Details
-
Manufacturer Part Number:
RN112APC
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Switchcraft Conxall
-
Additional Feature:
LOW PROFILE, 94V-0
-
Body/Shell Style:
JACK
-
Configuration:
1X1 HORIZONTAL
-
Connector Type:
GENERAL PURPOSE AUDIO
RN112APC Frequently Asked Questions (FAQs)
-
The recommended torque for the RN112APC connectors is 10-12 in-lbs (1.1-1.4 Nm) for the coupling nut and 5-7 in-lbs (0.6-0.8 Nm) for the backshell.
-
Yes, the RN112APC is designed to withstand high-vibration environments and meets the requirements of MIL-DTL-38999, which includes vibration testing.
-
The operating temperature range of the RN112APC is -65°C to 200°C (-85°F to 392°F), making it suitable for use in extreme environments.
-
The RN112APC is designed to be compatible with other connectors that meet the MIL-DTL-38999 standard, but compatibility with specific brands should be verified before use.
-
Yes, the RN112APC is designed to withstand harsh environments, including high humidity and salt spray, and meets the requirements of MIL-DTL-38999, which includes environmental testing.
Trust Checks
Expert Contribution
System Verified
Community Approved
RN112APC Overview
Use the download button to access the RN112APC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RN112,
or try a keyword search, such as Audio/RCA Connectors
