- Part Number RN113BPC
- Manufacturer Switchcraft
- Pin Count 5
- Part Category Connector
- Package Category Other
- Footprint Name Other - RN113BPC-1
- Released Date Dec 13, 2020
- Last Modified Date Jun 22, 2023 10:55 AM UTC
- Pinout / Pin List Click Here (Member Only)
RN113BPC Details
-
Manufacturer Part Number:
RN113BPC
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Switchcraft Conxall
-
Additional Feature:
LOW PROFILE, 94V-0
-
Body/Shell Style:
JACK
-
Configuration:
1X1 HORIZONTAL
-
Connector Type:
GENERAL PURPOSE AUDIO
RN113BPC Frequently Asked Questions (FAQs)
-
The recommended torque for the screws on the RN113BPC connector is 10-12 in-lbs (1.1-1.4 Nm).
-
Yes, the RN113BPC connector is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
-
Yes, the RN113BPC connector is designed to withstand high-vibration applications, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
-
The operating temperature range of the RN113BPC connector is -40°C to 125°C (-40°F to 257°F).
-
Yes, the RN113BPC connector is designed to be compatible with mil-spec connectors, such as MIL-C-5015 and MIL-C-26482.
Trust Checks
Expert Contribution
System Verified
Community Approved
RN113BPC Overview

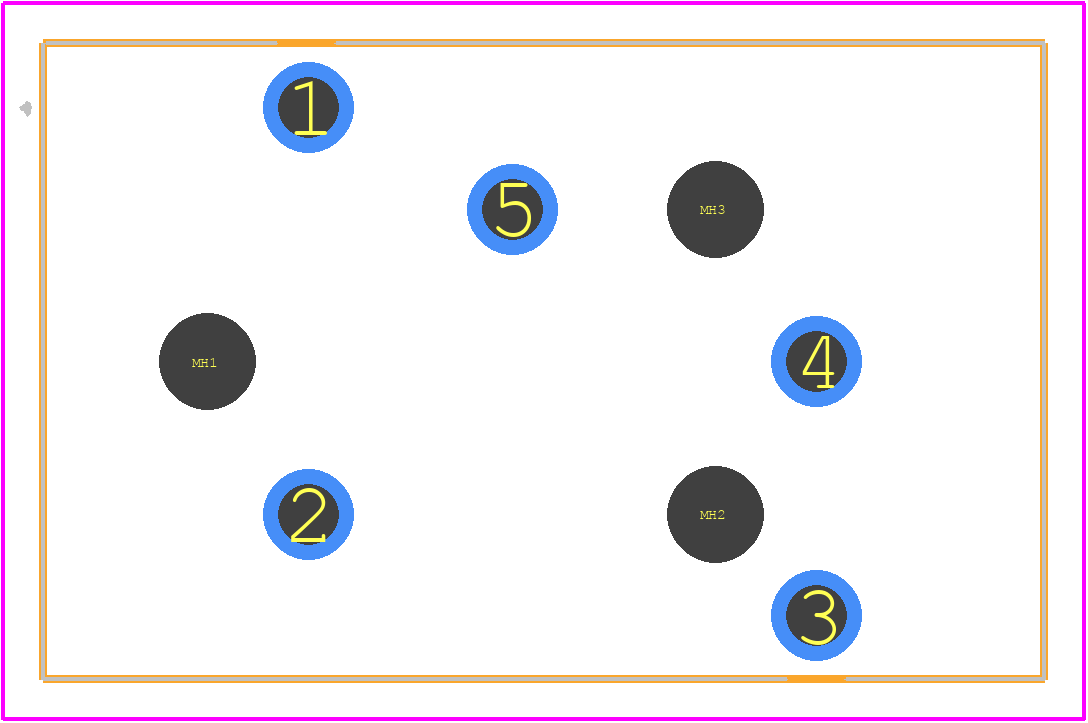

Use the download button to access the RN113BPC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RN113,
